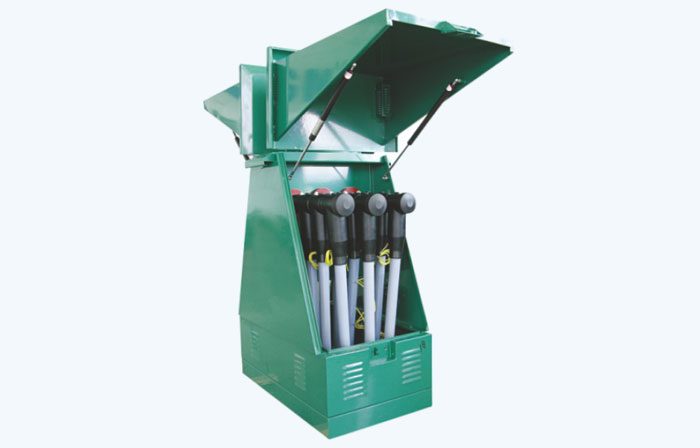

10kV European Cable Distribution Box

The European-style cable distribution box is a cable-based engineering equipment widely used in power distribution network systems in recent years.
SHARE:
Product Description

Its main features are two-way opening and the use of butt sleeves as connecting busbars. It has small length, clear cable arrangement, and three-core cables. There are significant advantages such as no need for long-span crossovers. The cable connector used complies with DIN47636 standard. Generally, bolt-fixed cable joints with a rated current of 630A are used.



Applicable environment

Ambient temperature: Maximum temperature: +40℃, minimum temperature -30℃
Wind speed: equivalent to 34m/s (not more than 700Pa)
Humidity: The daily average relative humidity is not greater than 95%
                  The average monthly relative humidity is not greater than 95%
Shockproof: Horizontal acceleration is not greater than 0.4m/s2, vertical acceleration is not greater than 0.15m/s2
Installation site inclination: no more than 3°
Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and the installation site should be free of severe vibration.

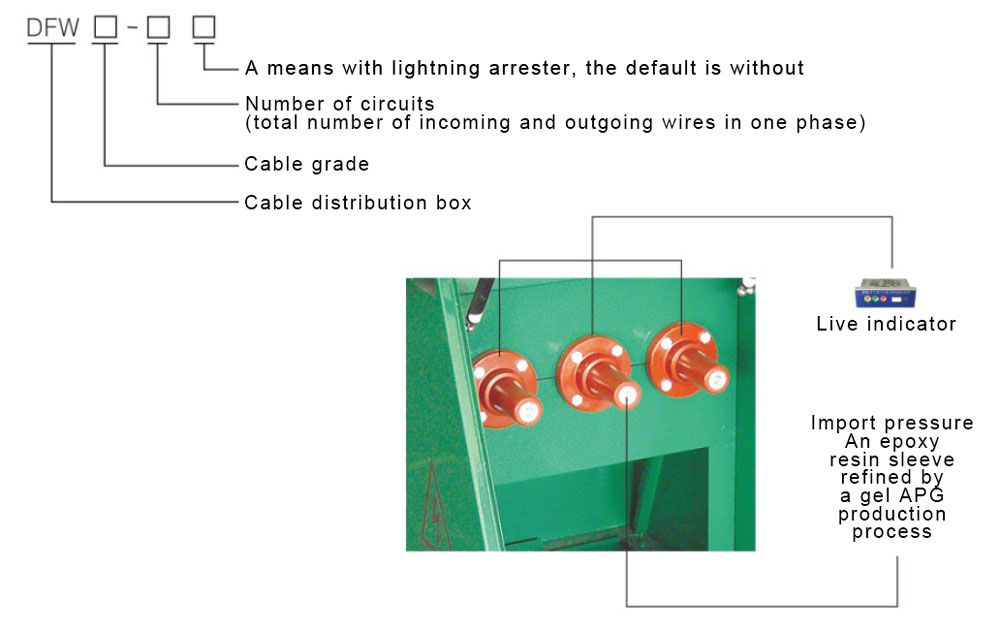

Order number description

Technical Parameters
Illustrate Parameter
Rated voltage 12KV
Rated current 630A
dynamic stable current 50kA/0.3s
Thermal stable current 20kA/3s
1 minute power frequency withstand voltage 42kV
15 minutes DC withstand voltage 52kV
Lightning impulse withstand voltage 105kV
Box protection level IP33
