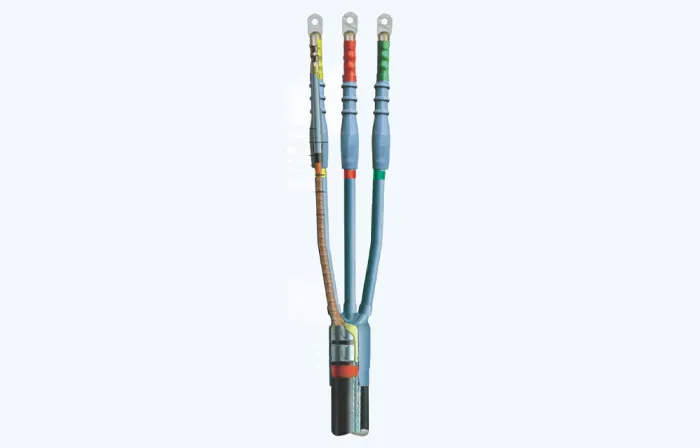

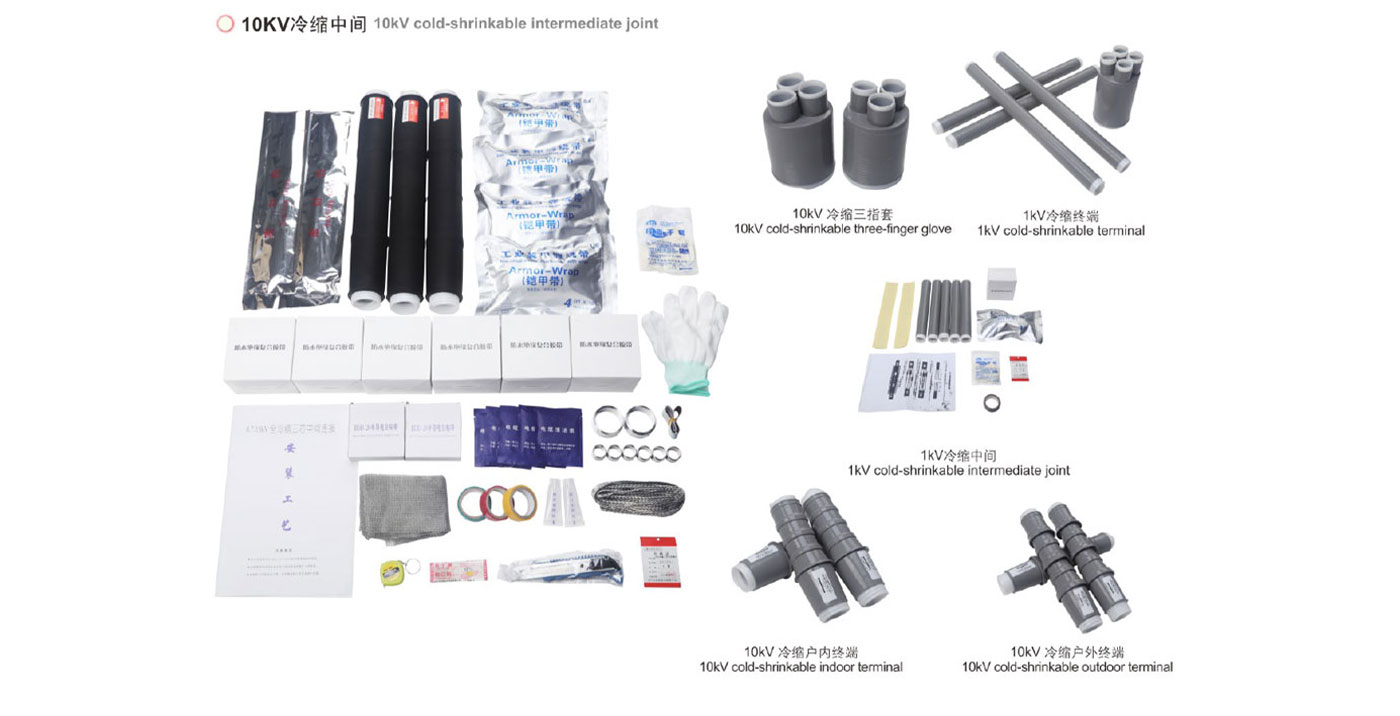

Cold Shrink Cable Accessory

Sel-reset shrink cable accessories s a kind of new cable accessores which is preabricated by adontina hiah elasticitv silicon rubber. This product is provided with special dielectric property, the performance of resistance against tracking and corrosion are strong, special water ab sorption rate, the constant shrinage force, and t wil not be insulation dead angle because the cable is bended.
SHARE:
Product Description

When it is installed at locale, it need not the heat source and soeca too. so itimoroves the satetv and reliabily ot oroduct. This product has manv other advantaoes ese. such as excelent canabilitv. nove construction and convenient insta ation. when vou use it vou use it. vou oniy need to tear the plank.and then it wl sei reset. This product is widely used in the following fields: electric power, communication, war industry, metallurgy, mining and petroleum chemica I industry, etc.

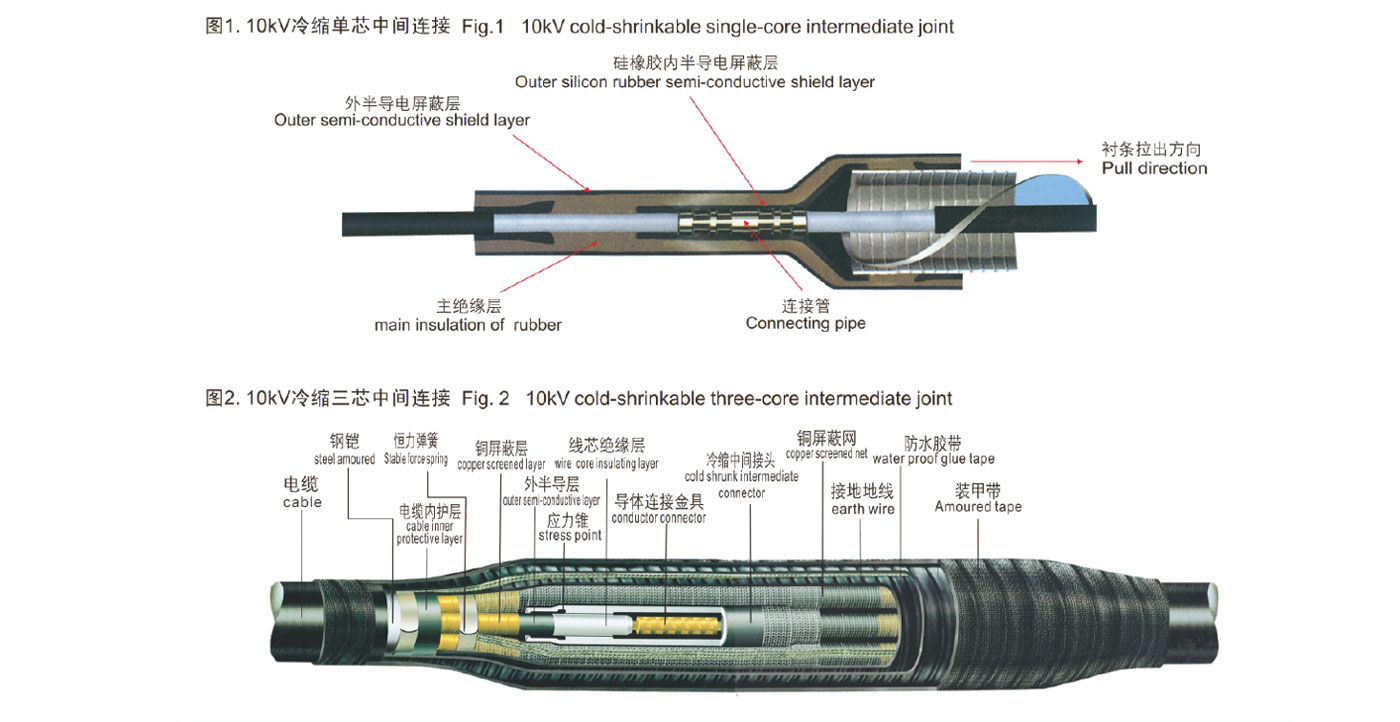

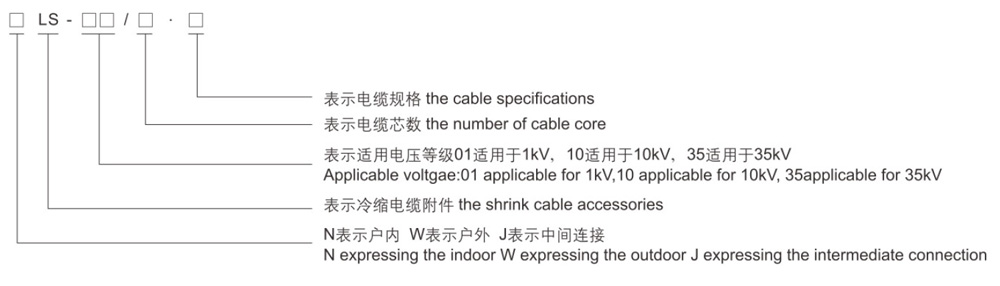

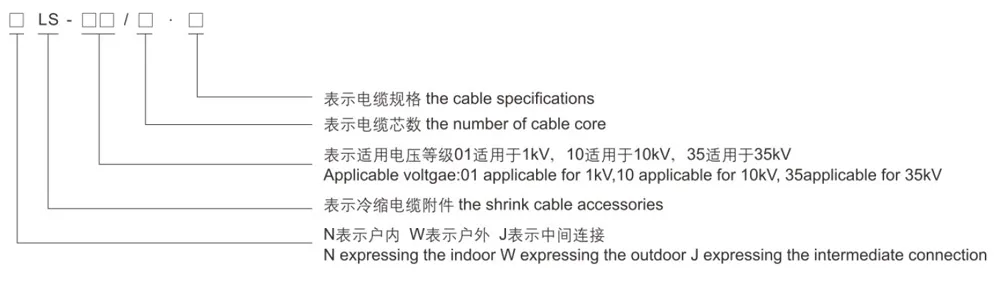

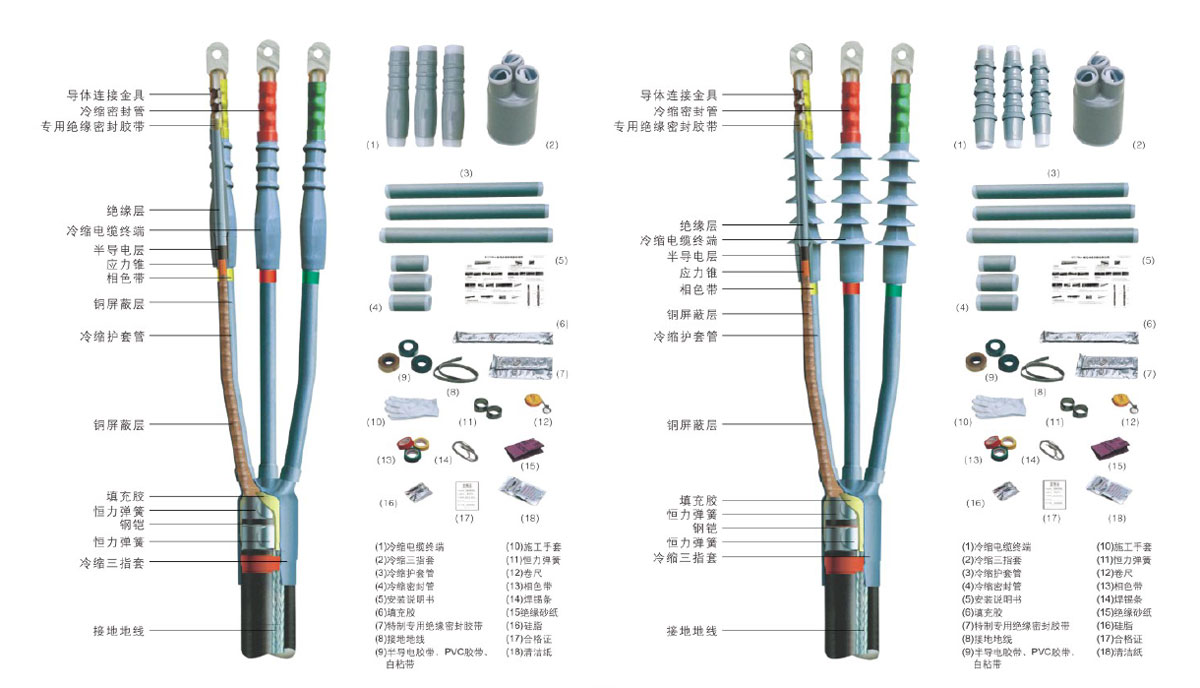

Model & Implication Self-reset shrink cable accessories





Technical Parameters
Self-reset cold shrinkable cable accessories technical data



Product name test name standard requirement result
10kV indoor outdoor termination and intermediate connectors p.f withstand voltage test 45kV no flash and no breakdown 45kV no flash and no breakdown
test of partial discharge 13kV<20pC 13kV时,3pC
load circulation test 5h heated,3h cooled, conductor heated to 90~95℃ conductor heated to 90-95℃, total 3 circulations
partial discharge test Discharge ≤20pC at 13kV 3Pc at 13kV
lmpulse voltage test 105kVon negative and positive poles applied each 10times,one flashover is allowed but not calculated.. 105kV no flash and no breakdown
test of the negative pole 52kV15min no flash and no breakdown 52kV,15min no flash and no breakdown
4h power voltage test 35kV.4h no flash and no breakdown 35kV 4h no flash and no breakdown







Self-reset cold shrinkable cable accessories technical data



Product name test name standard requirement result remarks
35kV indoor outdoor termination and intermediate connectors p.f withstand voltage test 105kV no flash and no breakdown 105kV no flash and no breakdown passed
test of partial discharge The discharge capacity at 39kV is not more than 10pC At 39kV, the discharge capacity of the combined sample is 4pC passed
load circulation test 5h heated.3h cooled,conductor heated to 90~95℃ Each cycle of heating the conductor to 95~100℃ is 8 hours, including 5 hours of heating and 3 hours of cooling, for a total of 3 cycles. as follows
partial discharge test The discharge capacity at 39kV is not more than 10pC At 39kV, the discharge capacity of the combined sample is 4pC passed
mpulse voltage test 250kV,on negative and positive poles applied each 10times, one flashover is allowed but not calculated.. 250kV,on negative and positive poles applied each 10times, one flashover is allowed but not calculated. passed
test of the negative pole 156kV,15min no flash and no breakdown 156kV15min no flash and no breakdown passed
Power voltage test 104kV,4h no flash and no breakdown 104kV 4h no flash and no breakdown passed





Table of specification of 1kV cold-shrinkable terminal cable accessories



Product name Mode & specification The applicable cable section mm²
1kV three-core cold-shrinkable terminal LS-1/3·0 10-16
LS-1/3·1 25-50
LS-1/3·2 70-120
LS-1/3·3 150-240
LS-1/3·4 300-400
1kV four-core cold-shrinkable terminal LS-1/4·0 10-16
LS-1/4·1 25-50
LS-1/4·2 70-120
LS-1/4·3 150-240
LS-1/4·4 300-400
1kV five-core cold-shrinkable terminal LS-1/5·0 10-16
LS-1/5·1 25-50
LS-1/5·2 70-120
LS-1/5·3 150-240
LS-1/5·4 300-400





Table of specification of 1kV cold-shrinkable intermediate cable accessories



Product name Mode & specification The applicable cable section mm²
1kV three-core cold-shrinkable intermediate joint JLS-1/3·0 10-16
JLS-1/3·1 25-50
JLS-1/3·2 70-120
JLS-1/3·3 150-240
JLS-1/3·4 300-400
1kV four-core cold-shrinkable intermediate joint JLS-1/4·0 10-16
JLS-1/4·1 25-50
JLS-1/4·2 70-120
JLS-1/4·3 150-240
JLS-1/4·4 300-400
1kV five-core cold-shrinkable intermediate joint JLS-1/5·0 10-16
JLS-1/5·1 25-50
JLS-1/5·2 70-120
JLS-1/5·3 150-240
JLS-1/5·4 300-400





Table of specification of 10kV cold-shrinkable cable accessories





Product name Mode & specification The applicable cable section mm²
10kV One-core indoor terminal NLS-10/1·1 25-50
NLS-10/1·2 70-120
NLS-10/1·3 150-240
NLS-10/1·4 300-400
10kV One-core outdoor terminal WLS-10/1·1 25-50
WLS-10/1·2 70-120
WLS-10/1·3 150-240
WLS-10/1·4 300-400
10kV One-core intermediate connector JLS-10/1·1 25-50
JLS-10/1·2 70-120
JLS-10/1·3 150-240
JLS-10/1·4 300-400
10kV Three-core indoor terminal NLS-10/3·1 25-50
NLS-10/3·2 70-120
NLS-10/3·3 150-240
NLS-10/3·4 300-400
10kV Three-core outdoor terminal WLS-10/3·1 25-50
WLS-10/3·2 70-120
WLS-10/3·3 150-240
WLS-10/3·4 300-400
10kV Three-core intermediate connector JLS-10/3·1 25-50
JLS-10/3·2 70-120
JLS-10/3·3 150-240
JLS-10/3·4 300-400





Table of specification of 35kV cold-shrinkable cable accessories



Product name Mode & specification The applicable cable section mm²
10kV One-core indoor terminal NLS-10/1·1 25-50
NLS-10/1·2 70-120
NLS-10/1·3 150-240
NLS-10/1·4 300-400
10kV One-core outdoor terminal WLS-10/1·1 25-50
WLS-10/1·2 70-120
WLS-10/1·3 150-240
WLS-10/1·4 300-400
10kV One-core intermediate connector JLS-10/1·1 25-50
JLS-10/1·2 70-120
JLS-10/1·3 150-240
JLS-10/1·4 300-400
10kV Three-core indoor terminal NLS-10/3·1 25-50
NLS-10/3·2 70-120
NLS-10/3·3 150-240
NLS-10/3·4 300-400
10kV Three-core outdoor terminal WLS-10/3·1 25-50
WLS-10/3·2 70-120
WLS-10/3·3 150-240
WLS-10/3·4 300-400
10kV Three-core intermediate connector JLS-10/3·1 25-50
JLS-10/3·2 70-120
JLS-10/3·3 150-240
JLS-10/3·4 300-400





Table of specification of 35kV cold-shrinkable cable accessories





Product name Mode & specification The applicable cable section mm²
35kV One-core indoor terminal NLS-35/1·1 50-95
NLS-35/1·2 120-185
NLS-35/1·3 240-400
35kV One-core outdoor termina WLS-35/1·1 50-95
WLS-35/1·2 120-185
WLS-35/1·3 240-400
35kV One-core intermediate connector JLS-35/1·1 50-95
JLS-35/1·2 120-185
JLS-35/1·3 240-400
35kV Three-core indoor terminal NLS-35/3·1 50-95
NLS-35/3·2 120-185
NLS-35/3·3 240-400
Three-core outdoor terminal WLS-35/3·1 50-95
WLS-35/3·2 120-185
WLS-35/3·3 240-400
35kV Three-core intermediate connector JLS-35/3。1 50-95
JLS-35/3·2 120-185
JLS-35/3·3 240-400
