Heat Shrink Cable Accessory

Radiation co-connection heat-shrinkable cable accessories is the newest product of the national cable accessories industry. The product is the dim-ension, light in the weight, reliable performance. powerful adaptation, easily installation and low price.
SHARE:
Product Description

lt is widely used in the inside-and-outside direct and intermediate terminal connection of every kinds of power cable including co-connection cable, plastics cable and oil-immersed cable.lt also can be used as the connection accessories of the communication cable and the insulated protection.lt is widely used in power supply of the power, petroleun and chemi-cal industry, me-tallurgy and mine, construction and shipbuilding.

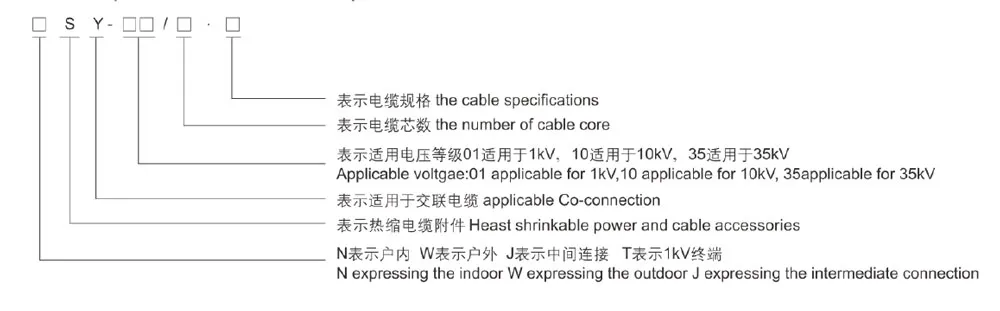

Model & Implication of the heat shrinkable power cable accessories

Note: 0 in the specification of the cable represents that the cable is adaptable for 10-16mm² cable, 1 represents that the cable is adaptable for 25-50mm² cable, 2 represents that the cable is adaptable for 70-120mm² cable, 3 represents that the cable is adaptable for 150, 240mm² cable, 4 represents that the cable is adaptable for 300-500mm² cable.



Technical Parameters
10kV The main technical data of the heat shrinkable power cable accessories



Order Test items Standard requirements Test result
1 1min power frequency voltage test 45kV no flash and no breakdown 45kV1minthe respecitively phase of the combination sample has noflash and no breakdown
2 Load circulation test conductorheated to 90-95C8hof every circulation-5h heated and 3h cooled,total 3 circulations complets 3load circulations conforming the standard requirements judge by the following tests
3 Partial discharge test the dischargeis not above 20pC when the voltageis below 13kV yellow green red
≤2 ≤2 6
4 Impulse voltage test 105kV 10times of the positive and the negative respectively,no flash and no breakdown 105kV 10times of the positive and the negative respectively, the respectively phase of the combination sample has no flash and no breakdown
5 15min DC test of the negative pole 52kV no flash and no breakdown 52kV the respectively phase of the 15min combination sample has no flash and no breakdown
6 4h power voltage test 35kV no flash and no breakdown 35kV the respectively phase ofthe 4h combination samplehas noflash and no breakdown

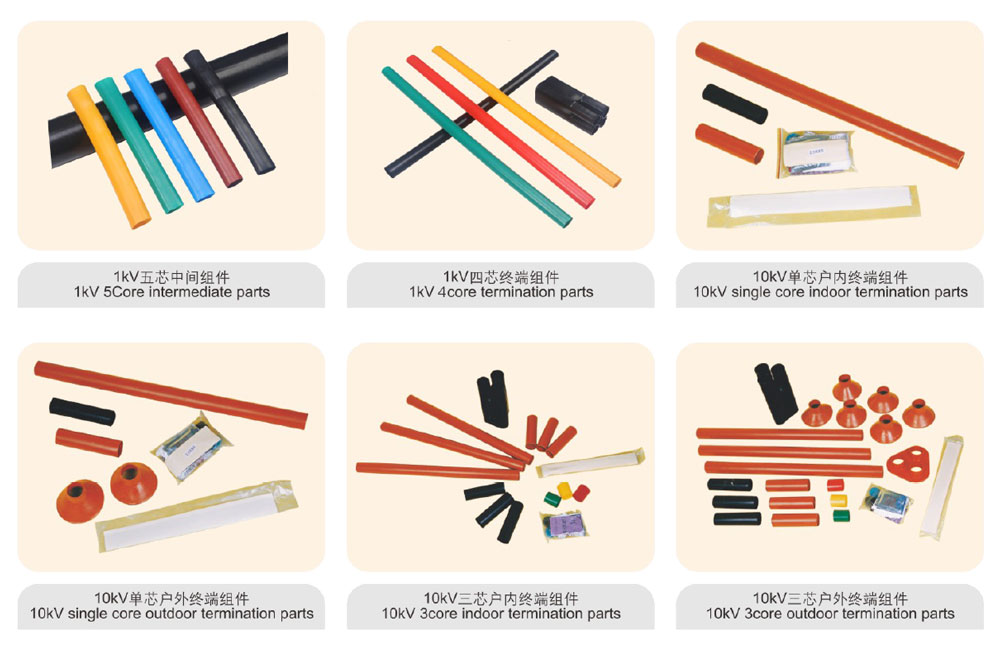

Specification table of 10kV one-core co-connection heat shr-inkable cable accessories



Product name Mode & specification The applicable cable section mm²
One-core indoor terminal NSY-10/1·0 10-16
NSY-10/1·1 25-50
NSY-10/1·2 70-120
NSY-10/1·3 150-240
NSY-10/1·4 300-500
One-core outdoor terminal WSY-10/1·0 10-16
WSY-10/1·1 25-50
WSY-10/1·2 70-120
WSY-10/1·3 150-240
WSY-10/1·4 300-500
One-core intermediate connector JSY-10/1·0 10-16
JSY-10/1·1 25-50
JSY-10/1·2 70-120
JSY-10/1·3 150-240
JSY-10/1·4 300-500





Specification table of 10kV three-core co-connection heat shr-inkable cable accessories



Product name Mode & specification The applicable cable section mm²
Three-core indoor terminal NSY-10/3·0 10-16
NSY-10/3·1 25-50
NSY-10/3·2 70-120
NSY-10/3·3 150-240
NSY-10/3·4 300-500
Three-core outdoor terminal WSY-10/3·0 10-16
WSY-10/3·1 25-50
WSY-10/3·2 70-120
WSY-10/3·3 150-240
WSY-10/3·4 300-500
Three-core intermediate connector JSY-10/3·0 10-16
JSY-10/3·1 25-50
JSY-10/3·2 70-120
JSY-10/3·3 150-240
JSY-10/3·4 300-500





Specification table of 1kV co-connection heat shrinkable cable accessories



Product name Mode & specification The applicable cable section mm²
One-core cable terminal SY-1/1·0 10-16
SY-1/1·1 25-50
SY-1/1·2 70-120
SY-1/1·3 150-240
SY-1/1·4 300-500
Two-core cable terminal SY-1/2·0 10-16
SY-1/2·1 25-50
SY-1/2·2 70-120
SY-1/2·3 150-240
SY-1/2·4 300-500
Three-core cable terminal SY-1/3·0 10-16
SY-1/3·1 25-50
SY-1/3·2 70-120
SY-1/3·3 150-240
SY-1/3·4 300-500
Four-core cable terminal SY-1/4·0 10-16
SY-1/4·1 25-50
SY-1/4·2 70-120
SY-1/4·3 150-240
SY-1/4·4 300-500
Five-core cable terminal SY-1/5·0 10-16
SY-1/5·1 25-50
SY-1/5·2 70-120
SY-1/5·3 150-240
SY-1/5·4 300-500



Product name Mode & specification The applicable cable section mm²
One-core intermediate connector JSY-1/1·0 10-16
JSY-1/1·1 25-50
JSY-1/1·2 70-120
JSY-1/1·3 150-240
JSY-1/1·4 300-500
Two-core intermediate connector JSY-1/2·0 10-16
JSY-1/2·1 25-50
JSY-1/2·2 70-120
JSY-1/2·3 150-240
JSY-1/2·4 300-500
Three-core intermediate connector JSY-1/3·0 10-16
JSY-1/3·1 25-50
JSY-1/3·2 70-120
JSY-1/3·3 150-240
JSY-1/3·4 300-500
Four-core intermediate connector JSY-1/4·0 10-16
JSY-1/4·1 25-50
JSY-1/4·2 70-120
JSY-1/4·3 150-240
JSY-1/4·4 300-500
Five-core intermediate connector JSY-1/5·0 10-16
JSY-1/5·1 25-50
JSY-1/5·2 70-120
JSY-1/5·3 150-240
JSY-1/5·4 300-500

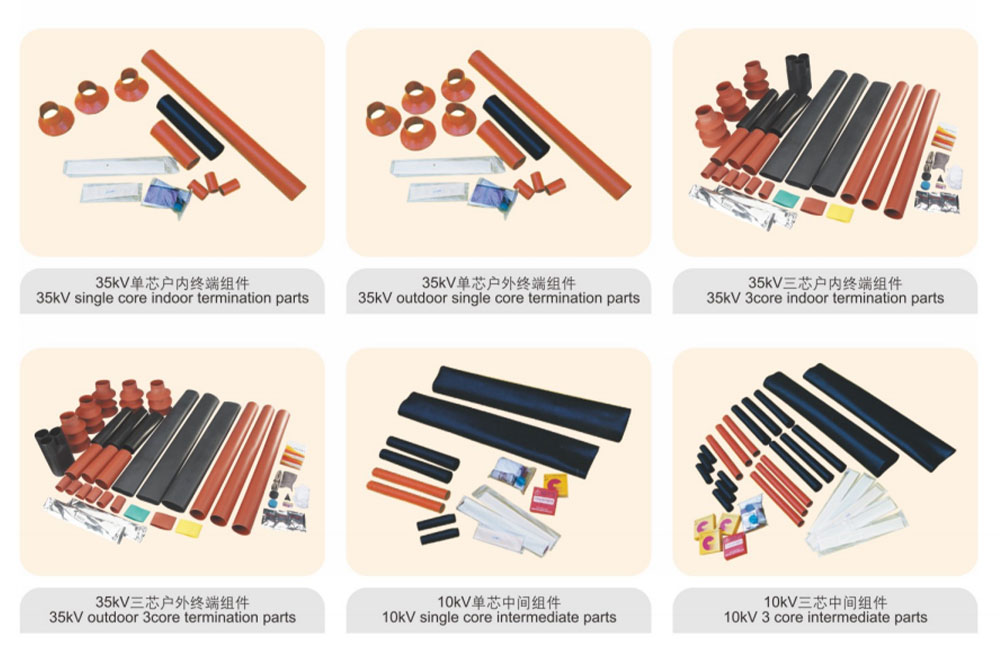

Shrinkable cable accessories Specification table for 35kV one-core co-connection heat



Product name Mode & specification The applicable cable section mm²
One-core indoor terminal NSY-35/1·1 50-120
NSY-35/1·2 150-240
NSY-35/1·3 300-500
One-core outdoor terminal WSY-35/1·1 50-120
WSY-35/1·2 150-240
WSY-35/1·3 300-500
One-core intermediate connector JSY-35/1·1 50-120
JSY-35/1·2 150-240
JSY-35/1·3 300-500





Specification table for 35kV three-core co-connection heat shrinkable cable accessories



Product name Mode & specification The applicable cable section mm²
Three-core indoor terminal NSY-35/3·1 50-120
NSY-35/3·2 150-240
NSY-35/3·3 300-500
Three-core outdoor terminal WSY-35/3·1 50-120
WSY-35/3·2 150-240
WSY-35/3·3 300-500
Three-core intermediate connector JSY-35/3·1 50-120
JSY-35/3·2 150-240
JSY-35/3·3 300-500





JYZT Heat shrinkable insulated finger cap accessories



Product name Mode & specification Product name Mode & specification Product name Mode & specification
0# Two finger cap ZT-2·0 1# Three finger cap ZT-3·1 3# Four finger cap ZT_4·3
1# Two finger cap ZT-2·1 2# Three finger cap ZT-3·2 4# Four finger cap ZT-4·4
2# Two finger cap ZT-2·2 3# Three finger cap ZT-3·3 0# Five finger cap ZT-5·0
3# Two finger cap ZT-2·3 4# Three finger cap ZT-3·4 1# Five finger cap ZT-5·1
4# Two finger cap ZT-2·4 0# Four finger cap ZT-4·0 2# Five finger cap ZT-5·2
# Three finger cap ZT-3·0 1# Four finger cap ZT-4·1 3# Five finger cap ZT-5·3
    2# Four finger cap ZT-4·2 4# Five finger cap ZT-5·4





Protection tube Phase color tube Stress tube accessory semiconductor tube Insulate the tube oil immersed tube accessories



Product Name Mode & specification
Protection Tube HTG-30/12 HTG-35/14 HTG-40/16 HTG-45/18 HTG-50/20 HTG-60/24 HTG-70/28 HTG-80/32 HTG-90/36 HTG-100/40 HTG-120/48 HTG-150/60 HTG-180/65
Seal Tube MFG Φ25 MFG Φ30 MFG Φ35 MFG Φ40 MFG Φ45 MFG Φ50 MFG Φ55 MFG Φ65 MFG Φ175 MFG Φ85
Stress Tube YLG-25/10 YLG-30/12 YLG-35/14 YLG-40/16 YLG-45/18 YLG-50/20 YLG-55/21 YLG-65/26 YLG-75/30 YLG-85/34
Semiconductor Tube BDG Φ35 BDG Φ40 BDG Φ45 BDG Φ50 BDG Φ55 BDG Φ60 BDG Φ65
Insulate The Tube JYG Φ10 JYG Φ15 JYG Φ20 JYG Φ25 JYG Φ30 JYG Φ35 JYG Φ40 JYG Φ45 JYG Φ50 JYG Φ55 JYG Φ65 JYG Φ75 JYG Φ85
Oil Immersed Tube YJG-25/10 YJG-30/12 YJG-35/14 YJG-40/16
