lt is mainly used in the bus-bar connection of power plate and power station, insulated protection and safety protection of the transfor-mer connecting pole.

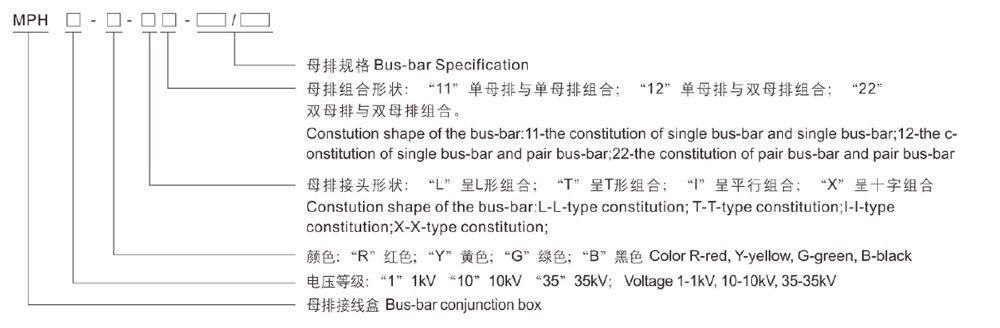

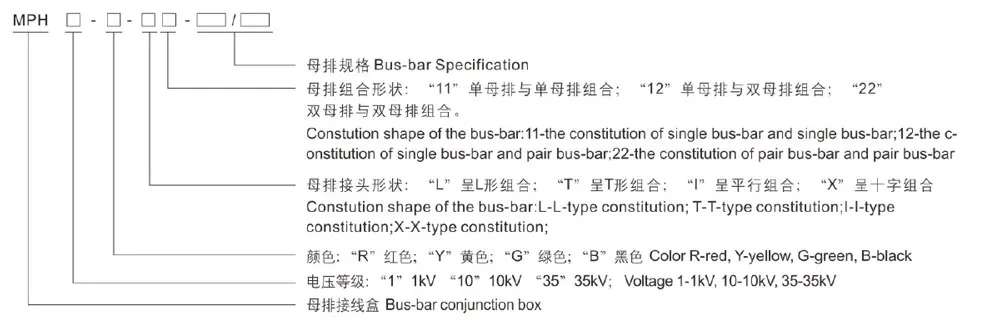

| Mode | Specification (mm) | Adaptable bus-bar Specification (mm) | Note |
| MPH10-B-L22 | 100×10/100×10 | 100×10; 100×10 | Black:L-type connector;connectiog100 x 10pair bus-bar and 100 x 10 pair bus-bar |
| MPH10-YT12 | 100×10/80×10 | 100×10; 80×10 | Yellow:T-type connector;connecting100 x 10pair bus-bar and 80 x 10 single bus-bar |
| MPH10-R-I11 | 120×10/120×10 | 120×10; 120×10 | Red:l-type connector; connecting 120 x 10 single bus-bar and 100 x 10 single bus-bar |
| MPH10-G-X22 | 100×10/100×10 | 100×10; 100×10 | Green: X-type connector;connectiog100 x 10pair bus-bar and 100 x 10 pair bus-bar |
Note: Profiled terminal block may be designed with customers' demands.
