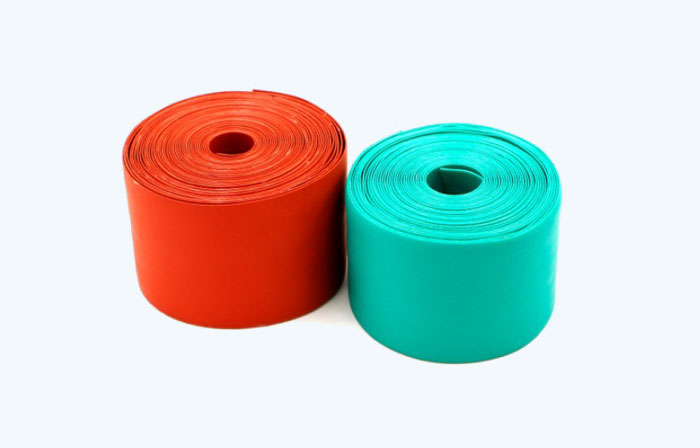

RSD Composite Insulation Heat Shrinkable Tape

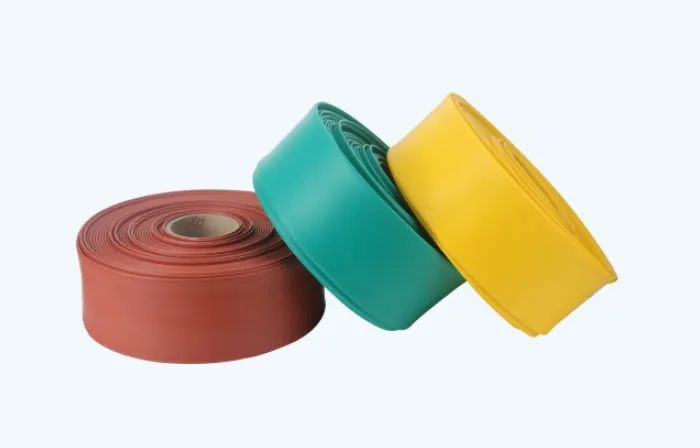

RSD Composite Insulation Heat Shrinkable Tape

Characteristics: RSD product is a insulator belt whose inner has the hot melt rubber. When heating the inner melts and the outside shrinks and the inner and outside can cohred together.lt has high strength and resistance to the out-side aging.

GET A QUOTE

Product Description

Usage:Insulator for the over-head bare wire;
Bus-bar insulator and protection in the high-and-low voltage switchgear box
Recovery of the damage power and cable protection
Insulator and recovery of other electrical equipments;
Tube correction-resistance.
Shrinkage temperature:120-130℃
Attention: Connect at least when winding
Note: We can provide special specification and color by the cilents' requir-ements.

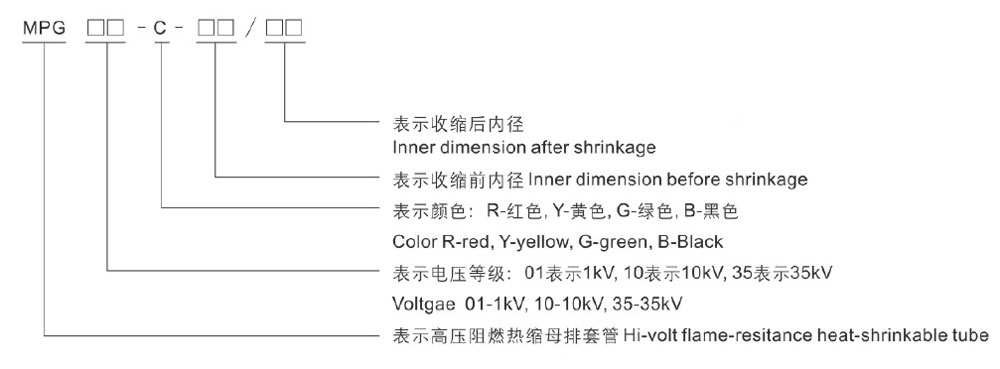

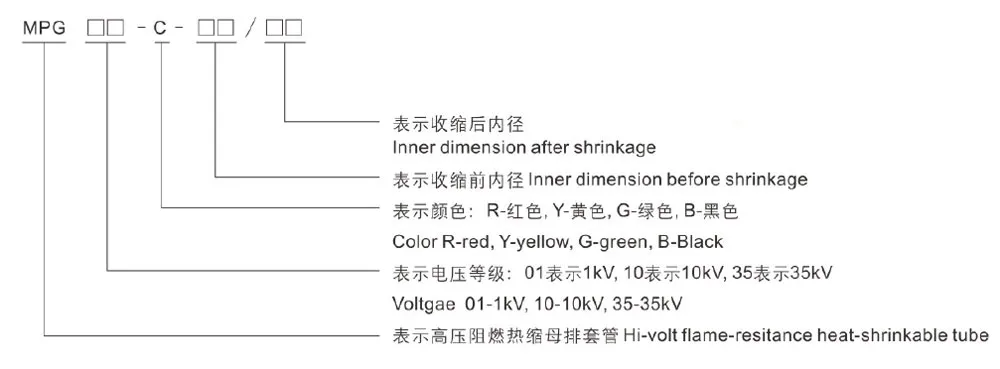

Model & Implication of MPG heat-shrinkable and hi-volt bus-bar tube

Technical Parameters

Voltage class	Mode & Specification	Width (mm)	Length (mm)	Thickness (mm)
1kV	RSD×10000×0.6	50	10000	0.6
10kV	RSD×5000×1.2	50	5000	1.2
35kV	RSD×5000×1.8	50	5000	1.8

Note: The continuous length of composite insulating thermal-shrinkable tape may be designed with customers' demands.

The main technical data of MPG heat-shrinkable hi-volt bus-bar tube

Order	Test items	Standard requirements	Test result
1	1min phase-phase power frequency withstand test	42kV no fash and no breakdown	42kV,1min,no flash and no breakdown sample
2	phase-phase impulse voltage test	75kV 15 times phase-phase impulse withstand test of the positive and the negative respectively, no flash and no breakdown	75kV 15 times phase-earth shock withstand test of the positive and the negative respectively; no flash and no breakdown sample
3	1min phase-earth power frequency withstand test	42kV no flash and no breakdown	42kV,1min,no flash and no breakdown sample
4	phase-earth impulse-voltgae test	75kV 15 times phase-earth impulse withstand test of the positive and the negative respectively; no flash and no breakdown	75kV 15 times phase-earth shock withstand test of the positive and the negative respectively; no flash and no breakdown sample
5	temperature rise test	the temperature rise of the copper should not over the bare copper's when the insulated tube shrunk in the below 40C surrounding.	the temperature rise of the bare copper: 45.7C the temperature rise of the insulated copper bus-bar: 41.4℃
6	withstand test of the heat-shrinkable tube	20kV,1min no breakdown	20kV.1min no breakdown

Specification table of the MPG heat-shrinkable hi-volt bus-bar tube

Mode & specification (mm)		product specification (mm)	Adaptable width of the bus-bar (mm)
MPG10-C-25/10	MPG35-C-25/10	Φ25	30
MPG10-C-30/12	MPG35-C-30/12	Φ30	40
MPG10-C-40/16	MPG35-C-40/16	Φ40	50
MPG10-C-50/20	MPG35-C-50/20	Φ50	60
MPG10-C-65/26	MPG35-C-65/26	Φ65	70
MPG10-C-75/30	MPG35-C-75/30	Φ75	80
MPG10-C-85/34	MPG35-C-85/34	Φ85	100
MPG10-C-100/40	MPG35-C-100/40	Φ100	120
MPG10-C-120/48	MPG35-C-120/48	Φ120	150
MPG10-C-150/60	MPG35-C-150/60	Φ150	180
MPG10-C-180/72	MPG35-C-180/72	Φ180	200
MPG10-C-200/80	MPG35-C-200/80	Φ200	250

Note: 10kVcontinuous length bus-bar tube, low-smoke length bus-bar tube.
