| Rated working voltage (V) | AC380、DC220 | ||||||
| Rated working current (A) | 2000 | 3000 | 6000 | ||||
| Number of poles | 1 pole | 2 pole | 3 pole | 1 pole | 2 pole | 3 pole | 1 pole |
| Dynamic stable current peak value (kA) | 100 | ||||||
| Is thermal stable current (effective value) (kA) | 50 | ||||||
| Auxiliary switch | AC220V、5A | ||||||

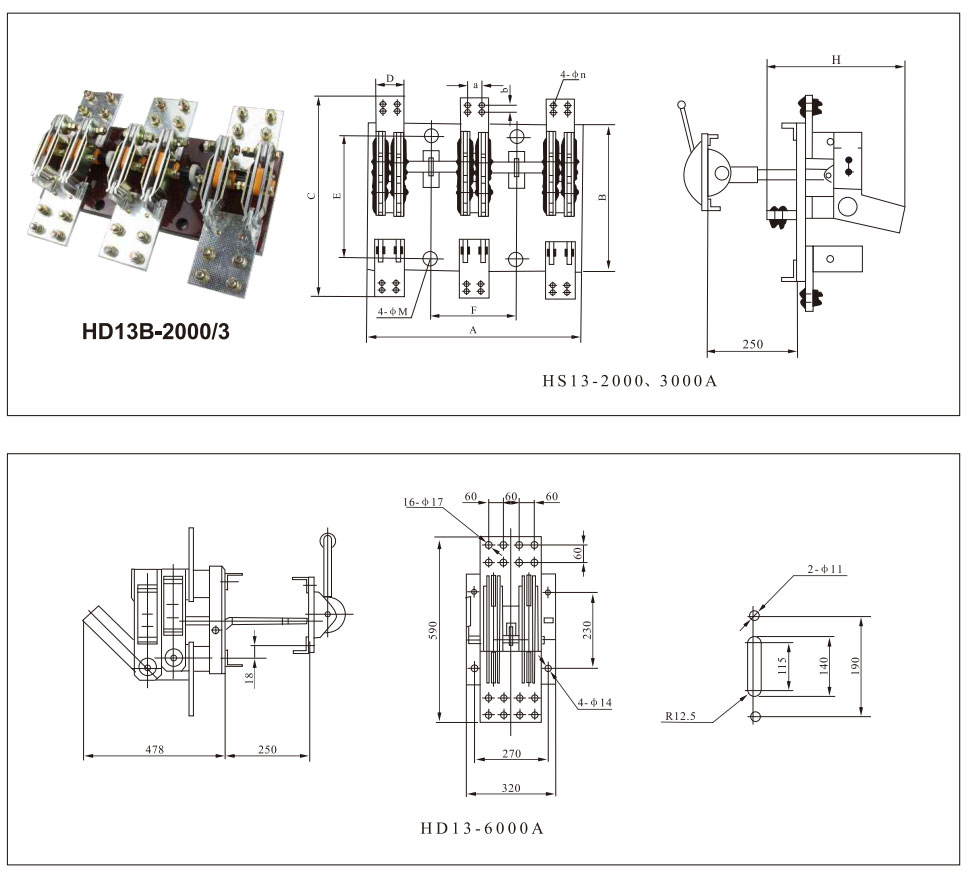

| Model | Conventional thermal current A | A | B | C | D | E | F | H | a | b | φM | φn |
| HD13 | 2000 | 502 | 192 | 350 | 100 | 161 | 179 | 215 | 50 | 30 | 11 | 13 |
| 3000 | 602 | 195 | 394 | 119 | 161 | 200 | 245 | 69 | 40 | 13 | 17 | |
| HS13 | 2000 | 525 | 320 | 475 | 100 | 291 | 180 | 340 | 60 | 30 | 11 | 13 |
| 3000 | 580 | 320 | 515 | 119 | 291 | 200 | 350 | 69 | 40 | 13 | 17 |
