Name: HGL Series Load Isolation Switch
Brand: 默认品牌
SKU: 00185
Rating: 4.1 (143 reviews)

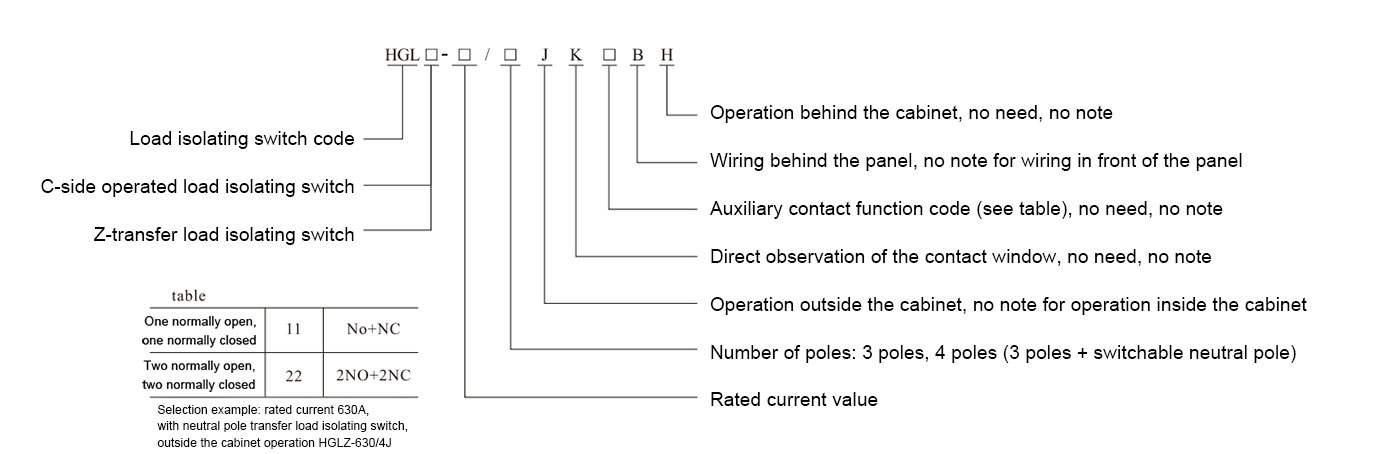

Product Description

Conventional thermal current Ith(A)	125	160	200	250	315	400	500	630	1000	1250	1600
Rated insulation voltage Ui(V)	750	750	750	750	1000	1000	1000	1000	1000	1000	1000
Dielectric strength (V)	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000
Rated impulse withstand voltage Uimp kV(Installation category IV)	8	8	8	8	12	12	12	12	12	12	12
Rated operating current Ie(A)
380V AC-21 AC-22 AC-23	125 125 125	160 160 160	200 200 200	250 250 250	315 315 315	400 400 340	500 500 425	630 630 536	1000 1000 800	1250 1250 1000	1600 1600 1280
660V AC-21 AC-22 AC-23	125 125 50	160 125 63	160 125 70	200 160 80	315 200 125	400 200 125	400 200 125	500 315 125	1000 630 400	1000 630 400	1600 800 500
220V AC-21 AC-22 AC-23	125 125 125	160 160 125	200 200 160	250 250 200	315 315 315	400 400 400	500 400 400	630 500 500	1000 1000 1000	1250 1250 1250	1600 1250 1250
440V AC-21 AC-22 AC-23	100 100 100	125 125 125	160 160 160	200 200 200	315 315 315	400 400 400	400 400 400	500 500 500	1000 1000 1000	1250 1250 1000	1250 1250 1000
Motor power P (kW)
380V 660V	45 55	55 70	55 70	75 110	110 160	110 220	110 220	110 220	365 560	365 560	500 560
Overload capacity
Rated short-time withstand current Icw (kA Rms) 0.1S/1.0S	20/10	20/10	25/12	25/12	30/20	30/20	50/25	50/25	90/50	90/50	90/50
Connection and breaking capacity
Rated connection capacity (A Rms) AC-23 380V	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000
Rated breaking capacity (A Rms) AC-23 380V	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000
Rated short-circuit connection capacity Icm (kA peak)	12	12	17	17	30	30	40	40	70	70	70
Mechanical life (number of cycle operations)	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000
Electrical life (number of cycle operations)
Rated voltage Ue=660V Rated current Ie COSΦ=0.95 AC-21 COSΦ=0.65 AC-22 COSΦ=0.35 AC-23	150 1000 500	1500 1000 500	1500 1000 500	1500 1000 500	750 500 250	750 500 250	750 500 250	750 500 250	600 400 200	600 400 200	450 300 150
Operating torque (N·m)	6.5	6.5	10	10	14.5	14.5	14.5	14.5	27	27	27
Weight (Kg) 3-pole 4-pole	1 1.5	1 1.5	2 2.5	2 2.5	3.5 4	3.5 4	4 4.5	4 4.5	10.5 13	10.5 13	16 20

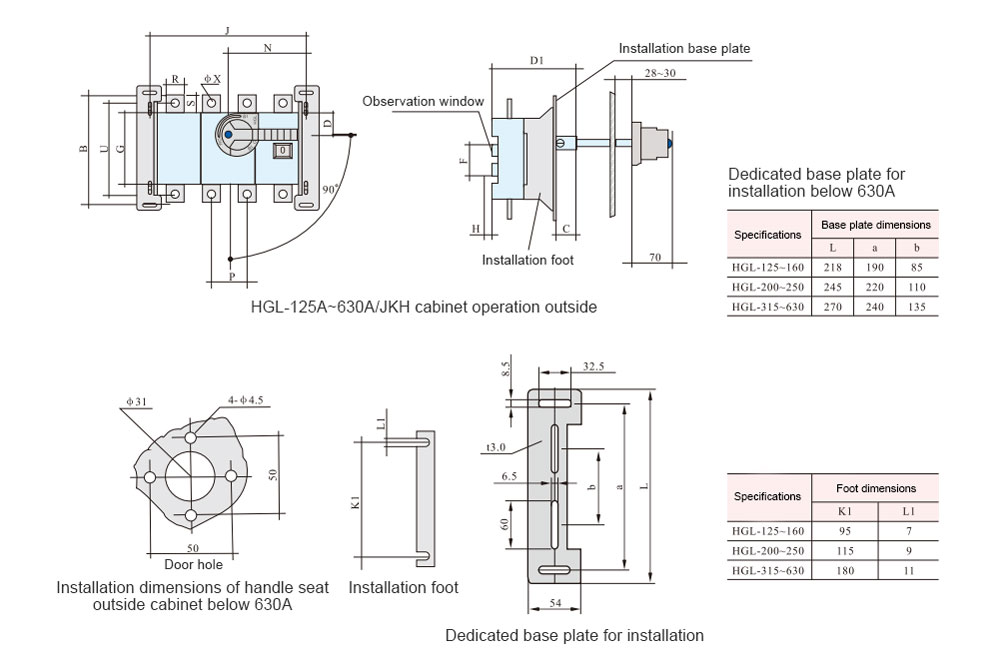

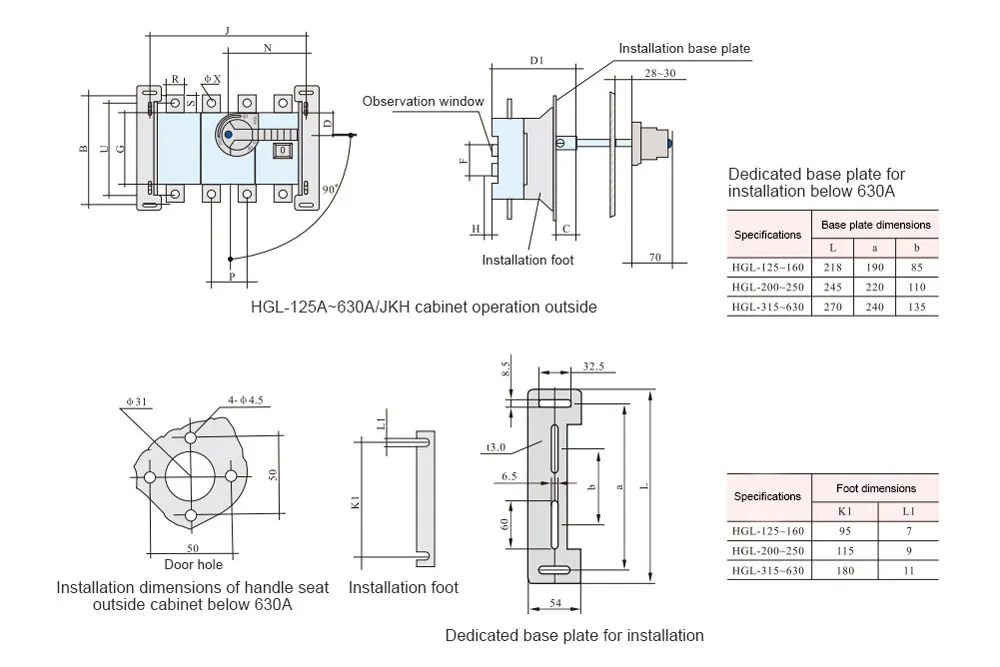

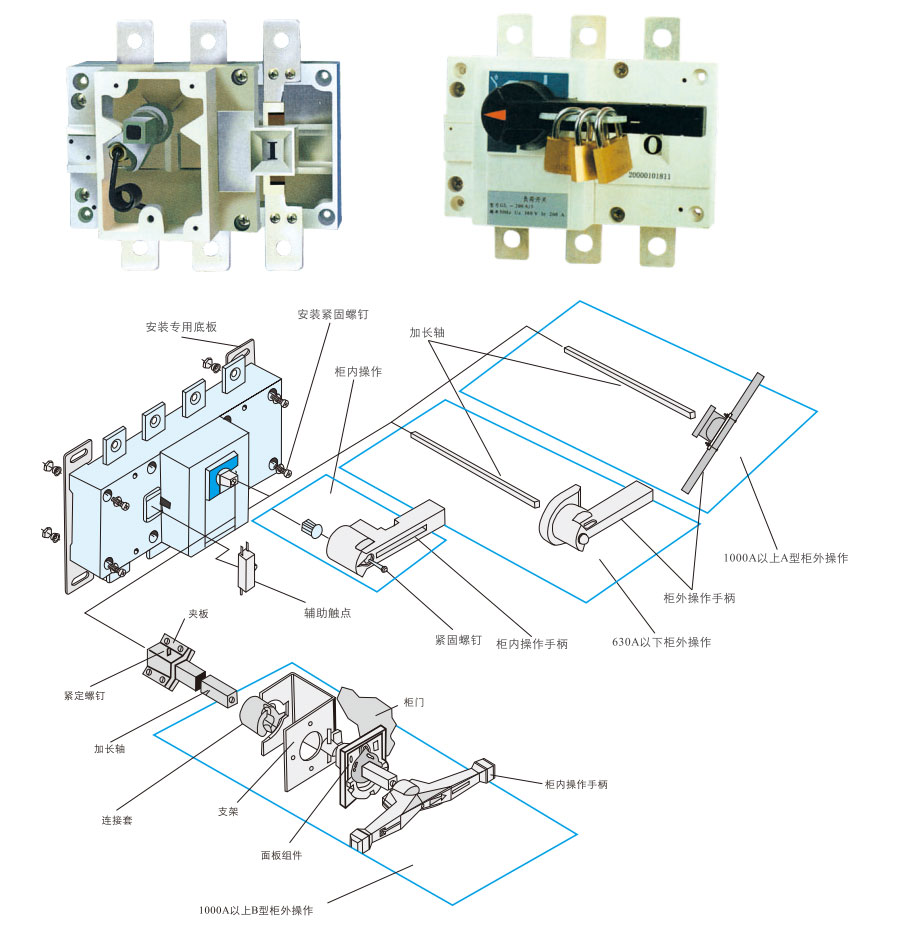

Installation dedicated base plate below 630A

Specifications	Baseboard size
Specifications	L	a	b
HGL-125-160	218	190	85
HGL-200~250	245	220	110
HGL-315~630	270	240	135

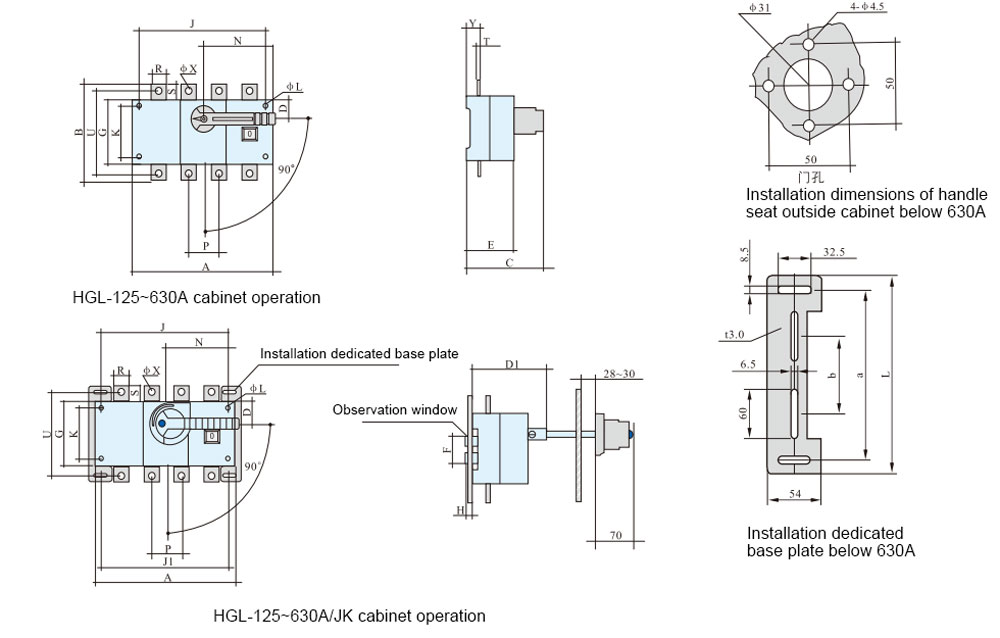

Specifications	Appearance and installation dimensions
Specifications	A	B	C	D	D1	E	G	ΦL	J	J1	K	N	P	R	S	T	U	ΦX	Y	F	H
HGL-125/3	140	135	125	27	92	73	85	5.5	120	120	65	85	36	20	25	3.5	115	9	25	59	10
HGL-125/4	170	135	125	27	92	73	85	5.5	150	150	65	85	36	20	25	3.5	115	9	25	59	10
HGL-160/3	140	135	125	27	92	73	85	5.5	120	120	65	85	36	20	25	3.5	115	9	25	59	10
HGL-160/4	170	135	125	27	92	73	85	5.5	150	150	65	85	36	20	25	3.5	115	9	25	59	10
HGL-200/3	180	170	136	35	98	84	110	5.5	160	160	90	115	50	25	30	3.5	140	11	25	76	15
HGL-200/4	230	170	136	35	98	84	110	5.5	210	210	90	115	50	25	30	3.5	140	11	25	76	15
HGL-250/3	180	170	136	35	98	84	110	5.5	160	160	90	115	50	25	30	3.5	140	11	25	76	15
HGL-250/4	230	170	136	35	98	84	110	5.5	210	210	90	115	50	25	30	3.5	140	11	25	76	15
HGL-315/3	230	240	190	50	135	118	160	7	210	210	140	145	65	32	40	5	206	11	37	94	20
HGL-315/4	290	240	190	50	135	118	160	7	270	270	140	145	65	32	40	5	206	11	37	94	20
HGL-400/3	230	240	190	50	135	118	160	7	210	210	140	145	65	32	40	5	206	11	37	94	20
HGL-400/4	290	240	190	50	135	118	160	7	270	270	140	145	65	32	40	5	206	11	37	94	20
HGL-500/3	230	260	190	50	135	118	160	7	210	210	140	145	65	40	50	6	220	13	37	94	20
HGL-500/4	290	260	190	50	135	118	160	7	270	270	140	145	65	40	50	6	220	13	37	94	20
HGL-630/3	230	260	190	50	135	118	160	7	210	210	140	145	65	40	50	6	220	13	37	94	20
HGL-630/4	290	260	190	50	135	118	160	7	270	270	140	145	65	40	50	6	220	13	37	94	20

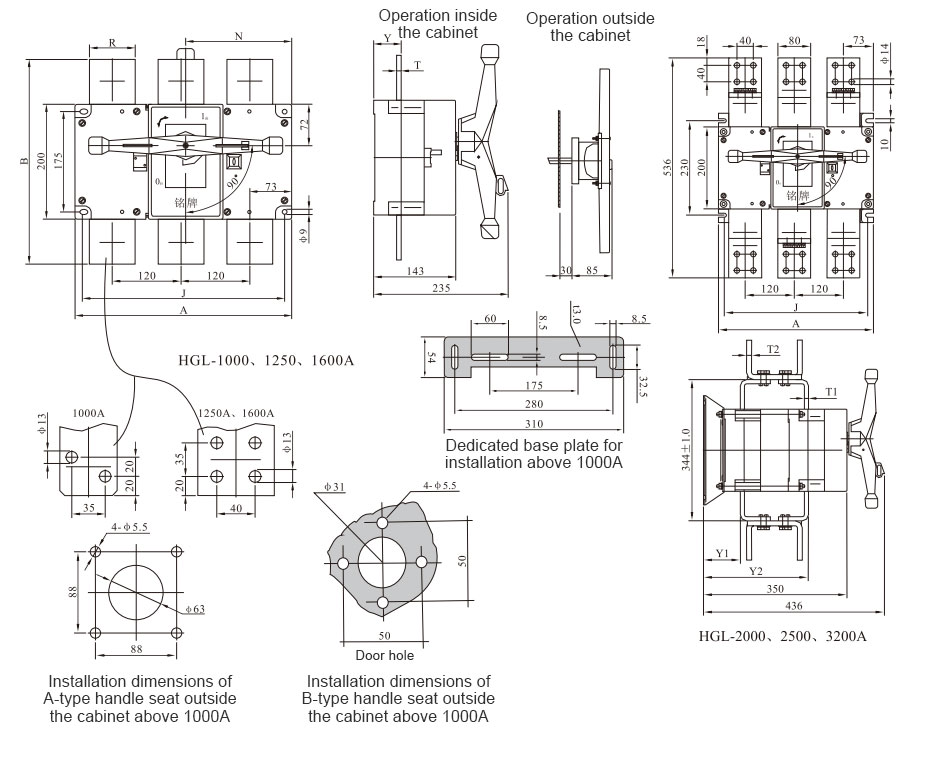

Specification	A	B	J	N	R	T	Y
HGL-1000/3	378	312	353	185	60	8	48
HGL-1000/4	498	312	473	249	60	8	48
HGL-1250/3	378	356	353	185	80	8	48
HGL-1250/4	498	356	473	249	80	8	48
HGL-1600/3	378	356	353	185	80	10	49
HGL-1600/4	498	356	473	249	80	10	49

Specification	A	J	T1	T2	Y1	Y2
HGL-2000/3	378	350	8	12	90	255
HGL-2000/4	498	470	8	12	90	255
HGL-2500/3	378	350	8	12	90	255
HGL-2500/4	498	470	8	12	90	255
HGL-3200/3	378	350	10	14	89	256
HGL-3200/4	498	470	10	14	89	256

Specification	Appearance and installation dimensions
Specification	B	C	D	D1	G	J	N	P	R	S	U	φX	F	H
HGL-125/3JH	135	17	27	92	85	120	75	36	20	25	115	9	59	10
HGL-125/4JH	135	17	27	92	85	150	75	36	20	25	115	9	59	10
HGL-160/3JH	135	17	27	92	85	120	75	36	20	25	115	9	59	10
HGL-160/4JH	135	17	27	92	85	150	75	36	20	25	115	9	59	10
HGL-200/3JH	170	18	35	98	110	160	105	50	25	30	140	11	76	15
HGL-200/4JH	170	18	35	98	110	210	105	50	25	30	140	11	76	15
HGL-250/3JH	170	18	35	98	110	160	105	50	25	30	140	11	76	15
HGL-250/4JH	170	18	35	98	110	210	105	50	25	30	140	11	76	15
HGL-315/3JH	240	20	50	135	160	210	135	65	32	40	206	11	94	20
HGL-315/4JH	240	20	50	135	160	270	135	65	32	40	206	11	94	20
HGL-400/3JH	240	20	50	135	160	210	135	65	32	40	206	11	94	20
HGL-400/4JH	240	20	50	135	160	270	135	65	32	40	206	11	94	20
HGL-500/3JH	260	20	50	135	160	210	135	65	40	50	220	13	94	20
HGL-500/4JH	260	20	50	135	160	270	135	65	40	50	220	13	94	20
HGL-630/3JH	260	20	50	135	160	210	135	65	40	50	220	13	94	20
HGL-630/4JH	260	20	50	135	160	270	135	65	40	50	220	13	94	20

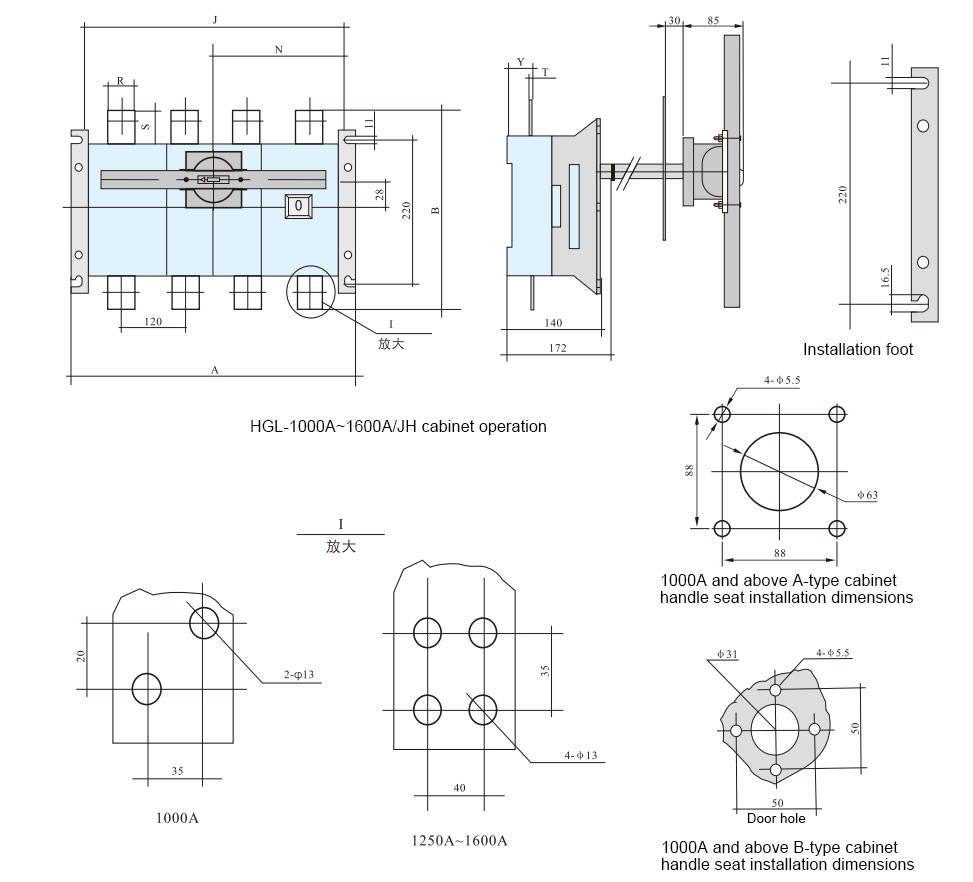

Specification	Appearance and installation dimensions
Specification	A	B	J	N	R	S	T	Y
HGL-1000/3JH	378	312	353	174	60	56	8	48
HGL-1000/4JH	498	312	473	238	60	56	8	48
HGL-1250/3JH	378	356	353	174	80	78	8	48
HGL-1250/4JH	498	356	473	238	80	78	8	48
HGL-1600/3JH	378	356	353	174	80	78	10	49
HGL-1600/4JH	498	356	473	238	80	78	10	49
