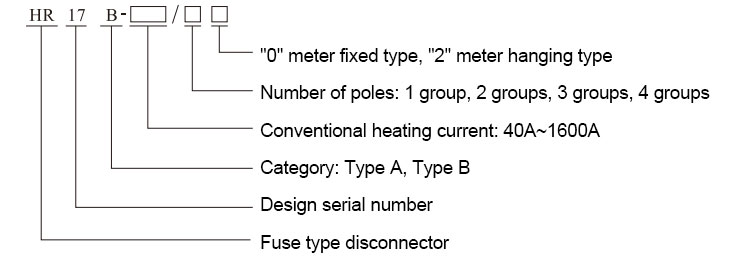

| Switch model | HR17B-40 | HR17B-63 | HR17B-160 | HR17B-250 | HR17B-400 | HR17B-630 |
| Rated insulation voltage Ui | 690V | 690V | 690V | 690V | 690V | 690V |
| Rated operating voltage Ue | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated operating current Ie | 40A | 63A | 160A | 250A | 400A | 630A |
| Rated short-circuit connection capacity lcm | 400A | 630A | 1600A | 2500A | 4000A | 6300A |
| Rated limiting short-circuit current Inc | 50kA | 50kA | 50kA | 50kA | 50kA | 50kA |
| Use category | AC-23B | AC-23B | AC-23B | AC-23B | AC-23B | AC-23B |
| Matched fuse | RT14-40 | RT14-63 | NT00-160 | NT1-250 | NT2-400 | NT3-630 |

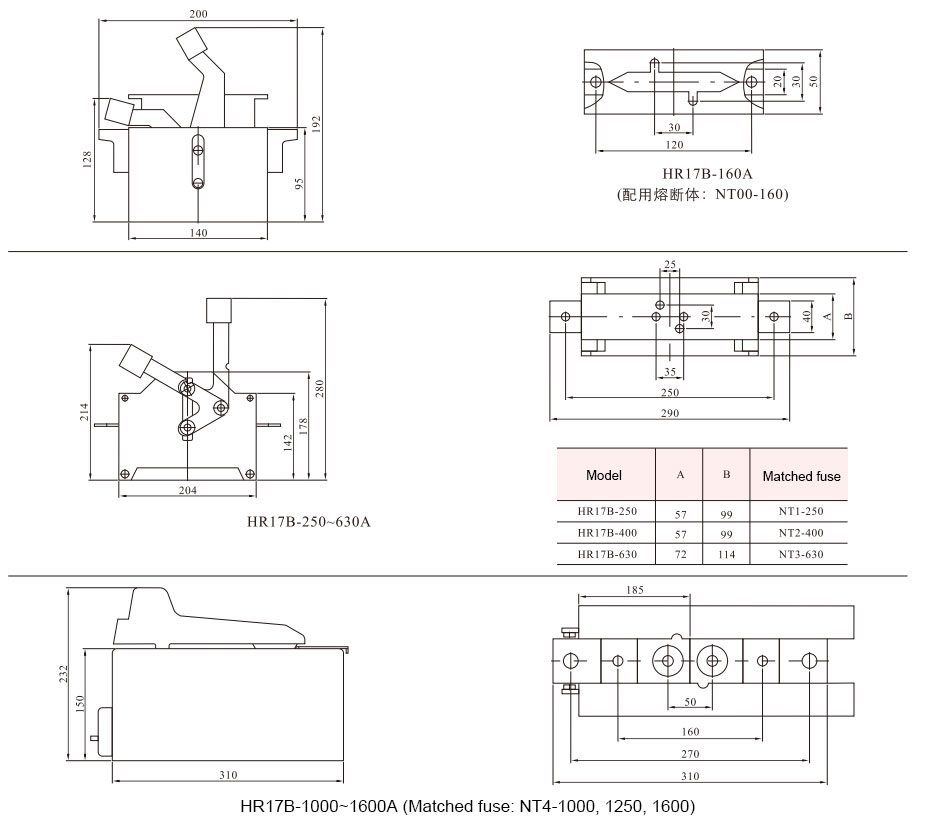

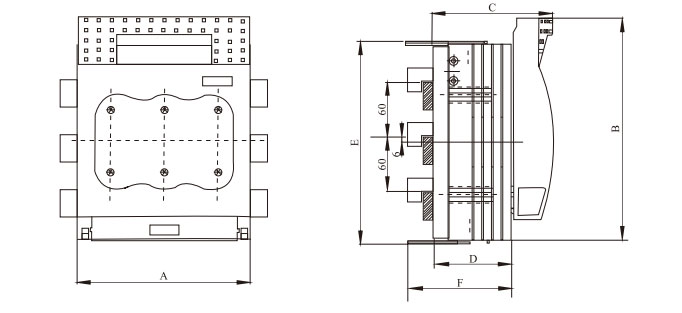

| Model | A | B | C | D | E | F |
| HR17B-160/32 | 106 | 200 | 97 | 60 | 200 | 87 |
| HR17B-250/32 | 185 | 247 | 128 | 88 | 221 | 110 |
| HR17B-400/32 | 210 | 290 | 145 | 97 | 268 | 125 |
| HR17B-630/32 | 256 | 300 | 160 | 112 | 285 | 139 |

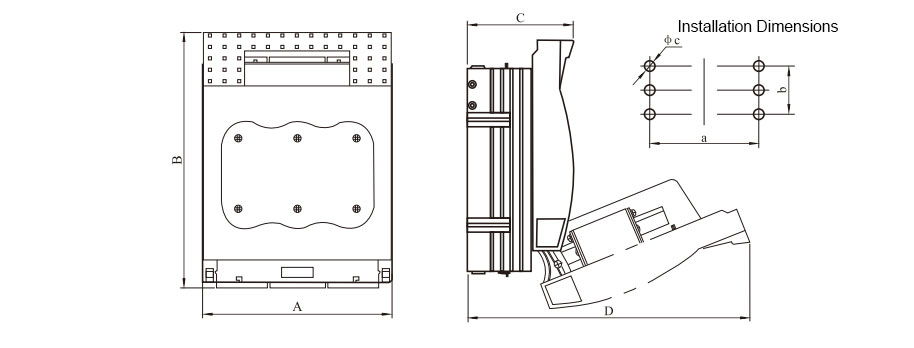

| Model | Dimensions (mm) | Installation dimensions (mm) | ||||||
| A | B | C | D | a | b | Φc | ||
| HR17B-40 | 2 poles | 55 | 116 | 76 | 150 | 25 | - | Φ6 |
| 3 poles | 76 | 116 | 76 | 150 | 42 | - | Φ6 | |
| HR17B-63 | 2 poles | 74 | 116 | 76 | 150 | 35 | - | Φ6 |
| 3 poles | 105 | 116 | 76 | 150 | 62 | - | Φ6 | |
| HR17B-160 | 2 poles | 75 | 200 | 83 | 205 | 43 | 25 | Φ7 |
| 3 poles | 106 | 200 | 83 | 205 | 66 | 25 | Φ7 | |
| 4 poles | 138 | 200 | 83 | 205 | 100 | 25 | Φ7 | |
| HR17B-250 | 2 poles | 128 | 247 | 110 | 295 | 72 | 50 | Φ11 |
| 3 poles | 185 | 247 | 110 | 295 | 114 | 50 | Φ11 | |
| 4 poles | 242 | 247 | 110 | 295 | 172 | 50 | Φ11 | |
| HR17B-400 | 2 poles | 145 | 290 | 125 | 340 | 80 | 50 | Φ11 |
| 3 poles | 210 | 290 | 125 | 340 | 130 | 50 | Φ11 | |
| 4 poles | 276 | 290 | 125 | 340 | 195 | 50 | Φ11 | |
| HR17B-630 | 2 poles | 175 | 300 | 145 | 360 | 90 | 50 | Φ11 |
| 3 poles | 256 | 300 | 145 | 360 | 162 | 50 | Φ11 | |
| 4 poles | 340 | 300 | 145 | 360 | 243 | 50 | Φ11 | |
