The product performance parameters meet IEC Standard requirements, products are leading in the country.

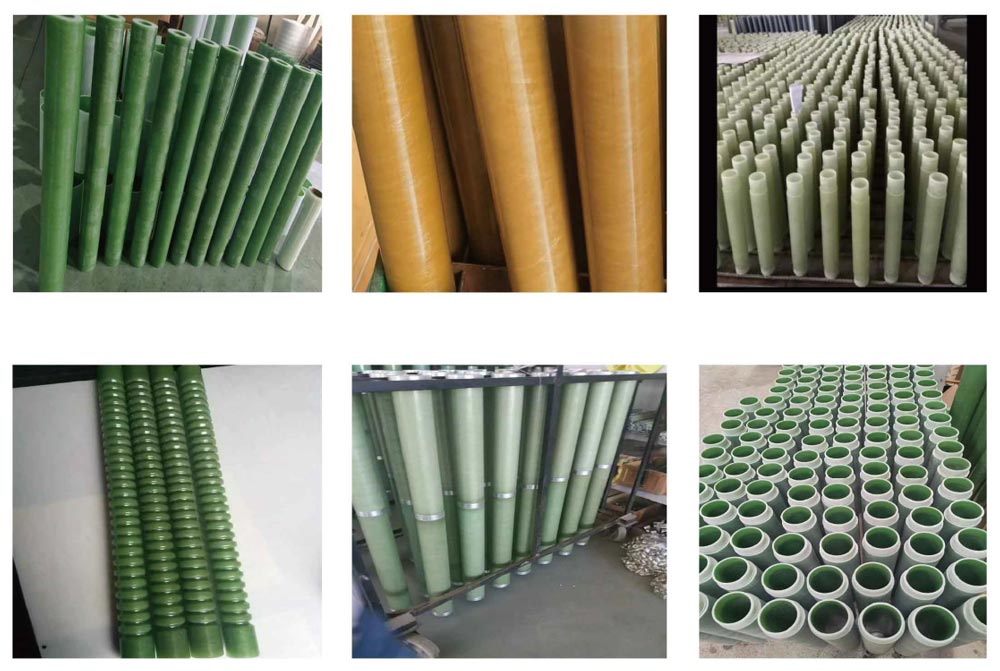

The epoxy glass fiber winding tube is made of uninterrupted fiber wet winding. We use the top domestic CNC winding equipment to adjust the winding angle from 28° to 89°. (The winding angle and tension system can be adjusted according to your requirements to meet your mechanical performance requirements)
Temperature resistance: 150 degrees, 180 degrees, 220 degrees or more
Main materials: epoxy resin + alkali-free glass fiber
Color: Natural color is light green, other colors can be customized
| Serial number | Indicator name | Unit | Standard value | Serial number | Indicator name | Unit | Standard value |
| 1 | Temperature resistant | ℃ | ≤150≥220 | 13 | tensile strength | MPa | Ring direction 600 |
| 2 | Pressure resistant | KV | 10-1000 | 14 | Compressive strength | MPa | Axial 240 |
| 3 | Inner diameter range | MM | ≥6 | 15 | Bending strength | MPa | Axial 350 |
| 4 | length range | MM | ≥1 | 16 | Shear strength | MPa | 150 |
| 5 | Thickness range | MM | ≥0.35 | 17 | Relative permittivity | 2-3.2 | |
| 6 | Fiber content (weight ratio) |
70~75% | 18 | dielectric loss factor | 0.003-0.015 | ||
| 7 | density | 2.00g/cm3 | 19 | Partial discharge | ≤5 | ||
| 8 | water absorption | 0.01% | 20 | Dielectric strength | Axial 3 ~6 kV/mm | ||
| 9 | Axial thermal expansion coefficient | 1.8 E-05 1/K | 21 | Dielectric strength | Radial 10 ~12 kV/mm | ||
| 10 | glass transition temperature | 110~120°C | 22 | lightning strike | 110KVP | ||
| 11 | Chemical resistant mineral oil | Excellent | 23 | Power frequency impact | 50KV | ||
| 12 | Tensile modulus of elasticity | Axial 14000 | 24 | Heat resistance grade | Class B, F, H | ||
| 13 | tensile strength | Axial 280 | 25 |
