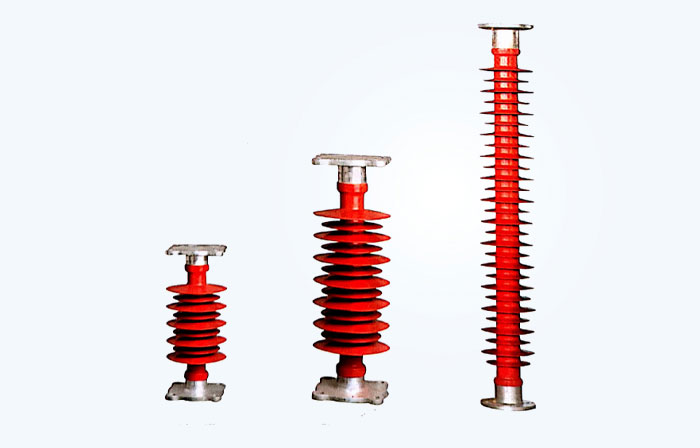

They do not require manual cleaning and are an ideal substitute for insulators. It can also be used to lead the optical fiber of the optical fiber composite ground wire through high-voltage areas.

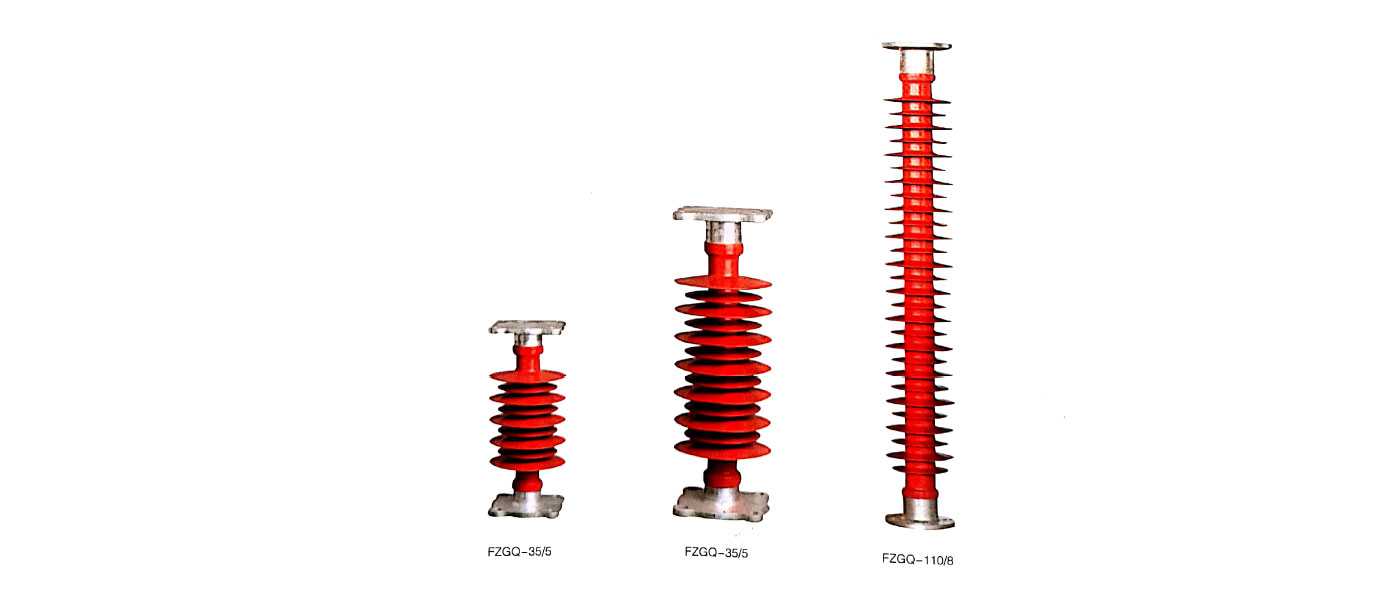

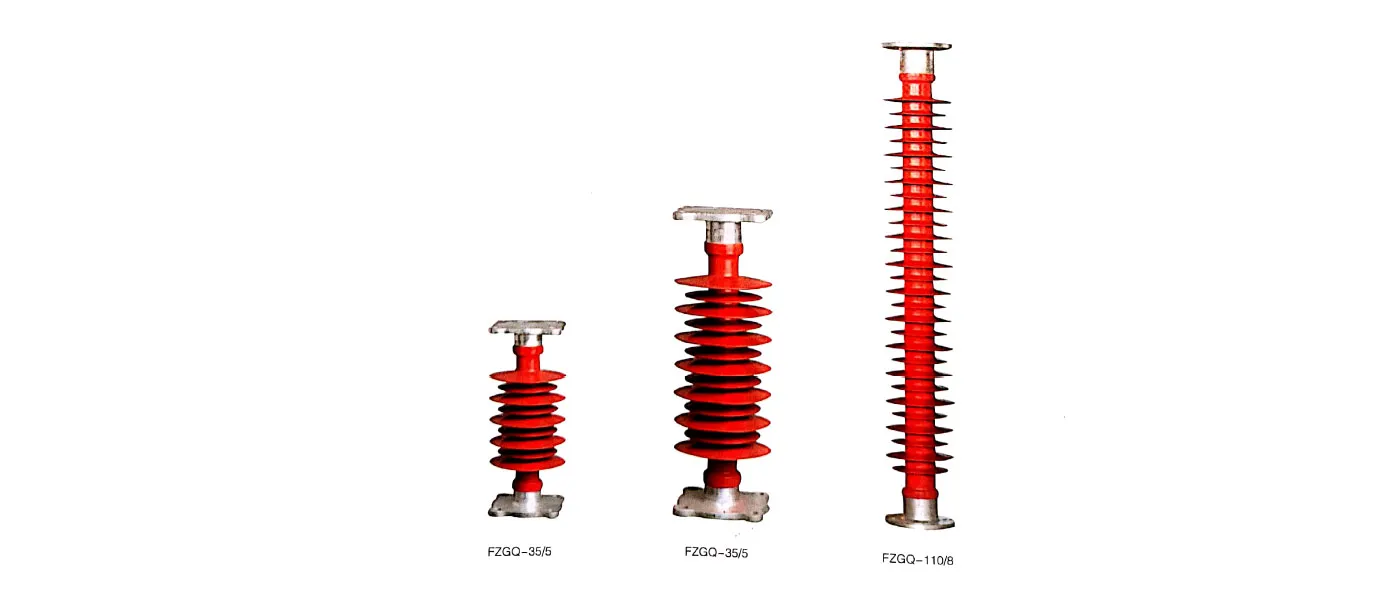

| Specifications and models | Rated voltagekV | Rated bending load kN | Structure height(mm) | Insulation distance(mm) | Minimum nominal creepage distance (mm) | Lightning full-wave impulse withstand voltage kV | Power frequency dry withstand voltage kV |
| FZGQ-35/5 | 35 | 5 | 445 | 353 | 930 | 185 | 80 |
| FZGQ-110/8 | 110 | 8 | 1270 | 1050 | 2900 | 550 | 230 |
| FZGQ-110/70 | 110 | 70 | 1700 | 1000 | 3600 | 550 | 230 |
| FZGQ-220/70 | 220 | 70 | 2700 | 2000 | 6600 | 1000 | 395 |
Note: 1. When the rated voltage of pillar-type composite optical fiber insulator is 220kV, 2 pieces of FZGQ-110/8 should be used in combination.
