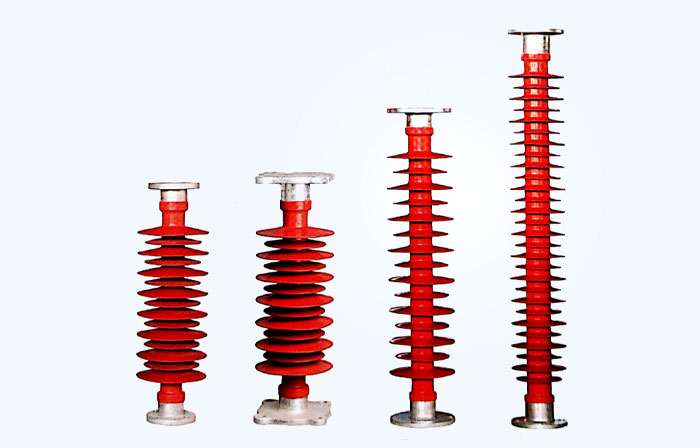

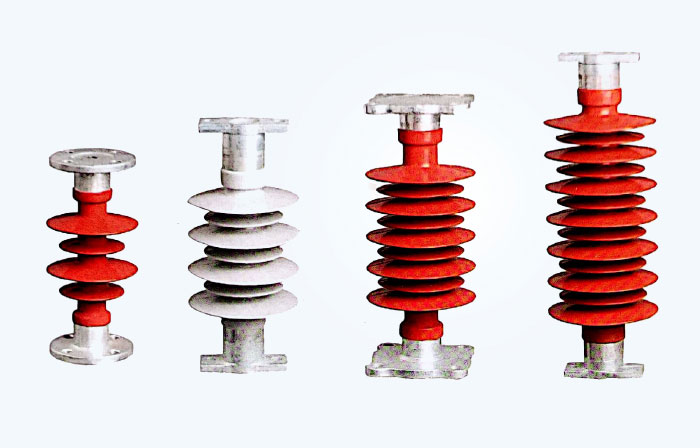

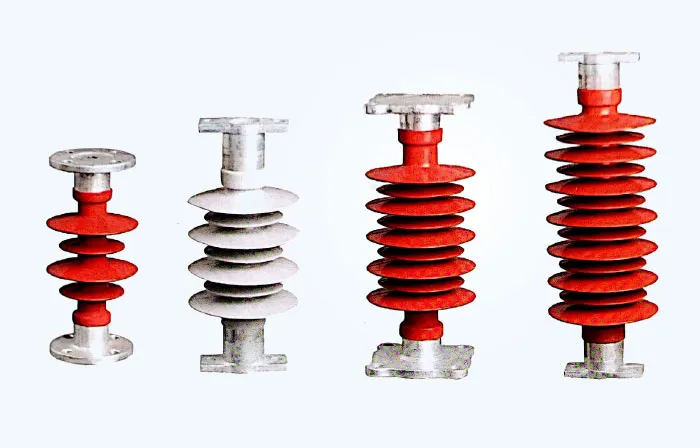

Composite pillar insulators have good bending resistance, strong anti-fouling ability, strong impact resistance, good shock resistance and anti-brittle fracture performance, small size, light weight, easy installation, maintenance-free, no manual cleaning, and interchangeable with porcelain sex.

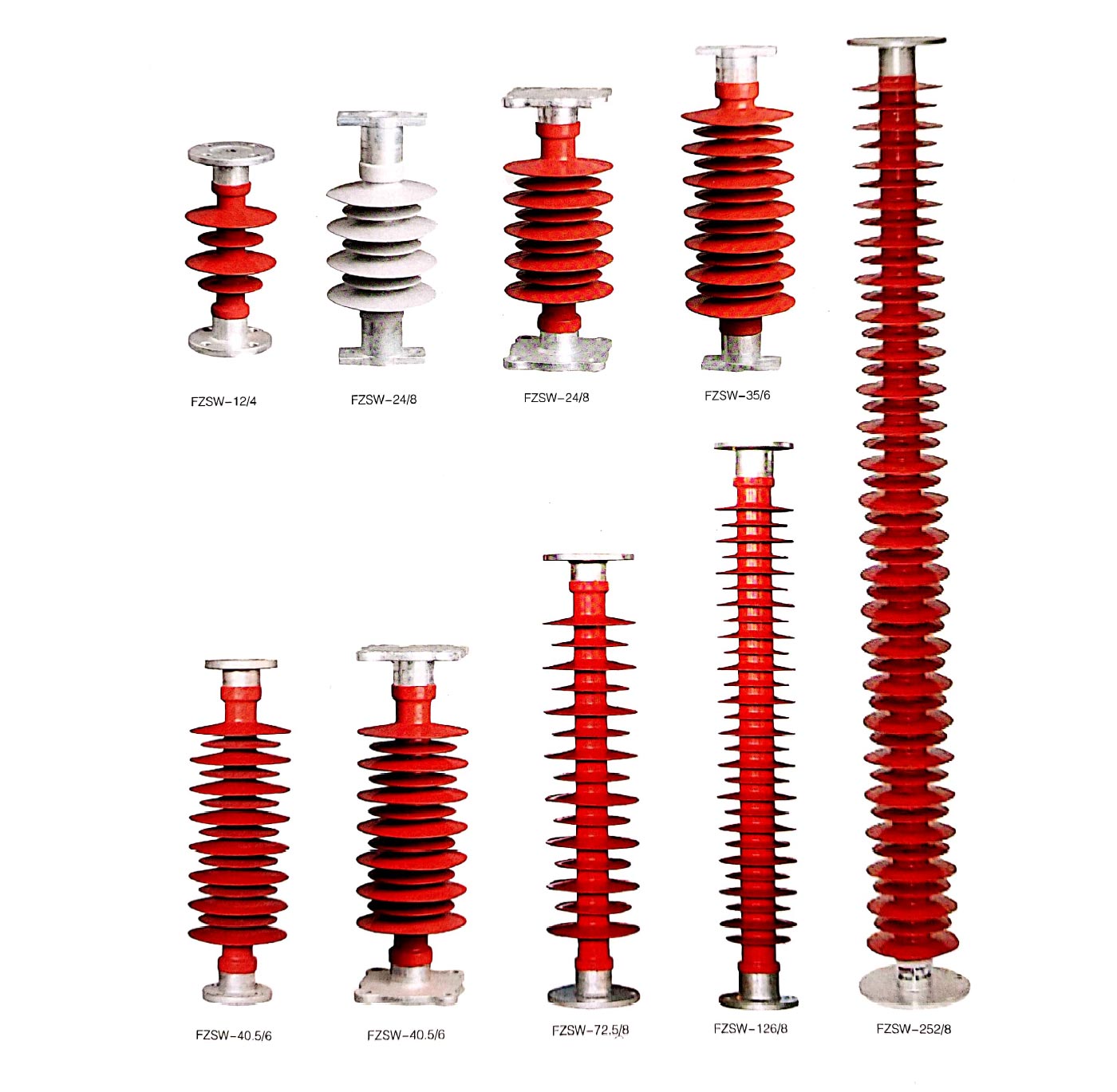

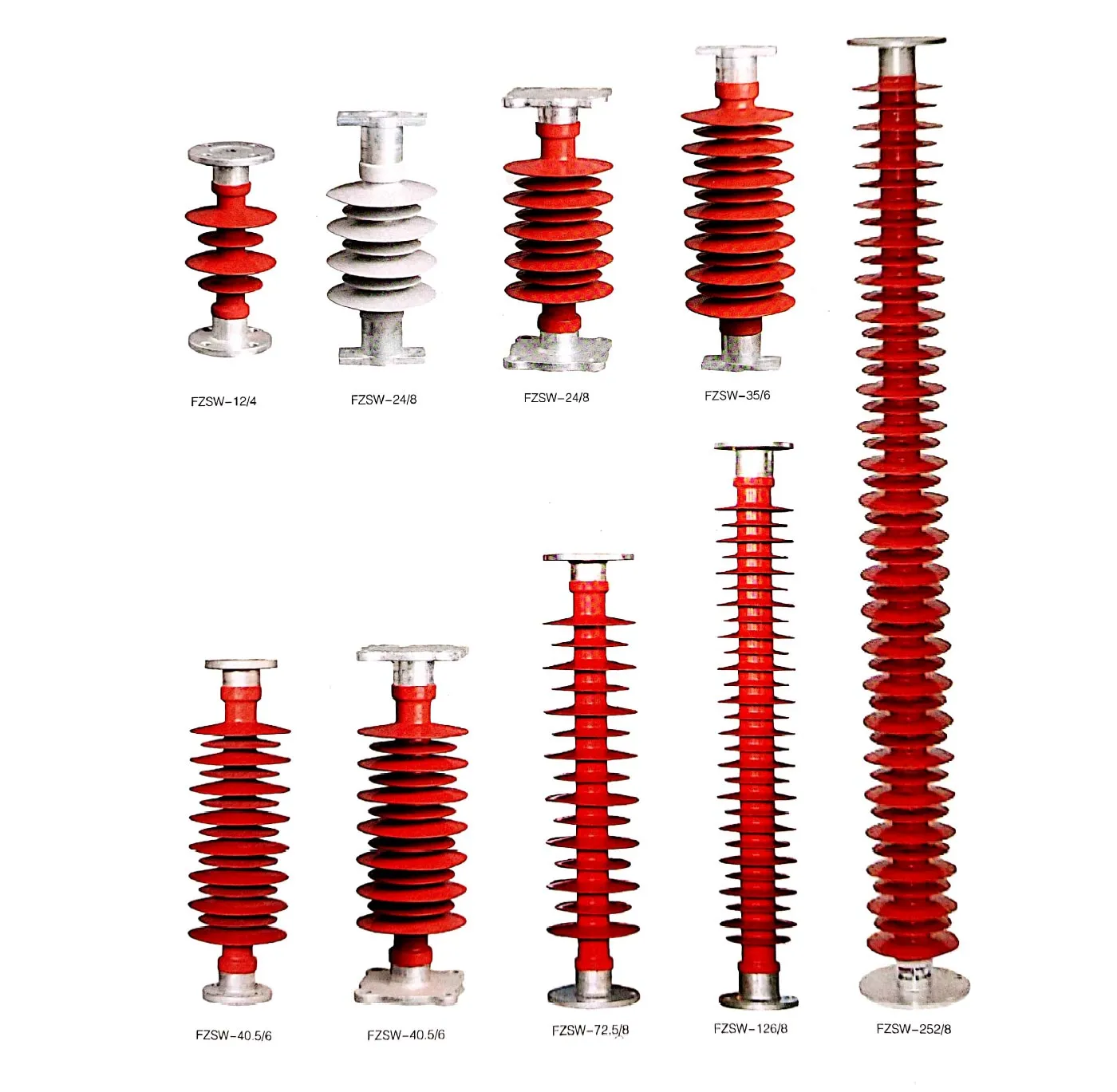

| Specifications and models | Rated voltage kV | Rated bending load kN | Structure height(mm) | Minimum arc distance H1 (mm) | Minimum nominal creepage distance (mm) | Lightning full-wave impulse withstand voltage kV | Power frequency wet withstand voltage 1min kV | (Number of holes x hole diameter - hole center circle center) | |
| Upper mounting hole size | Upper mounting hole size | ||||||||
| FZN4-12/4 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | M10 | 4xΦ14-Φ76 |
| FZN4-12/4 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | M16 | 4×Φ14-Φ76 |
| FZSW-12/4 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | 2×M8-Φ36 | 4×M12-Φ76 |
| FZSW-12/4 | 12 | 4 | 235±3 | 125 | 330 | 75 | 30 | 2×M12-Φ76 | 4×M12-Φ76 |
| FZSW-12/8 | 12 | 8 | 265±3 | 155 | 430 | 75 | 30 | 4×M12-Φ140 | 4×Φ14-Φ140 |
| FZSW-24/8 | 24 | 8 | 345±3 | 200 | 540 | 150 | 60 | 4×M12-Φ76 | 4×M12-Φ76 |
| FZSW-24/8 | 24 | 8 | 345±3 | 200 | 540 | 150 | 60 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-24/16 | 24 | 16 | 345±3 | 200 | 732 | 150 | 60 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-35/6-76 | 40.5 | 6 | 435±3 | 290 | 1260 | 185 | 80 | 2×M8-Φ36 | 4×Φ14-Φ76 |
| FZSW-40.5/6L(IEC) | 40.5 | 6 | 435±3 | 340 | 1260 | 200 | 80 | 4×M12-Φ76 | 4×M12-Φ76 |
| FZSW-40.5/6 | 40.5 | 6 | 435±3 | 340 | 1260 | 200 | 80 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-40.5/10L | 40.5 | 10 | 450±3 | 340 | 1260 | 200 | 80 | 4×Φ14-Φ140 | 4×M12-Φ140 |
| FZSW-40.5/16L | 40.5 | 16 | 500±3 | 370 | 1085 | 200 | 80 | 4×Φ14-Φ140 | 4×M12-Φ140 |
| FZSW-40.5/6-475(IEC) | 40.5 | 6 | 475±3 | 370 | 1020 | 200 | 80 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-40.5/6-475 | 40.5 | 6 | 475±3 | 370 | 1020 | 200 | 80 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-40.5/10-475 | 40.5 | 10 | 475±3 | 370 | 1260 | 200 | 80 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-72.5/4L | 72.5 | 4 | 780±5 | 650 | 2400 | 350 | 160 | 4×Φ14-Φ140 | 4×M12-Φ140 |
| FZSW-72.5/6L | 72.5 | 6 | 780±5 | 650 | 1850 | 350 | 160 | 4×Φ14-Φ140 | 4×M12-Φ140 |
| FZSW-72.5/8 | 72.5 | 8 | 780±5 | 600 | 1850 | 350 | 160 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-72.5/10 | 72.5 | 10 | 780±5 | 600 | 1950 | 350 | 160 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-72.5/12.5 | 72.5 | 12.5 | 770±3 | 600 | 1950 | 350 | 160 | 4×Φ14-Φ140 | 4×Φ14-Φ140 |
| FZSW-126/4 | 126 | 4 | 1440±5 | 1080 | 3510 | 550 | 230 | 4×Φ18-Φ140 | 4×Φ18-Φ140 |
| FZSW-126/8 | 126 | 8 | 1240±5 | 1050 | 3150 | 550 | 230 | 4×M12-Φ140 | 4×Φ18-Φ140 |
| FZSW-126/10 | 126 | 10 | 1240±5 | 1050 | 3150 | 550 | 230 | 4×M12-Φ140 | 4×Φ14-Φ140 |
| FZSW-126/12.5 | 126 | 12.5 | 1440±5 | 1050 | 3500 | 550 | 230 | 4×M12-Φ140 | 4×Φ14-Φ140 |
| FZSW-126/16 | 126 | 16 | 1440±5 | 1010 | 3500 | 550 | 550 | 4×Φ16-Φ225 | 8×Φ20-Φ225 |
| FZSW-252/6K | 252 | 6 | 2240±15 | 2070 | 6300 | 1050 | 1050 | 4×Φ16-Φ140 | 8×Φ20-Φ225 |
| FZSW-252/8 | 252 | 8 | 2340±15 | 2000 | 6700 | 1050 | 1050 | 4×Φ16-Φ190 | 8×Φ20-Φ225 |
Download Google: 1. Product specifications, models, quantities, etc. need to be specified when ordering; 2. The distance between the two center holes needs to be clearly stated. If it is not clear, it should be based on IEC and other relevant standards.
