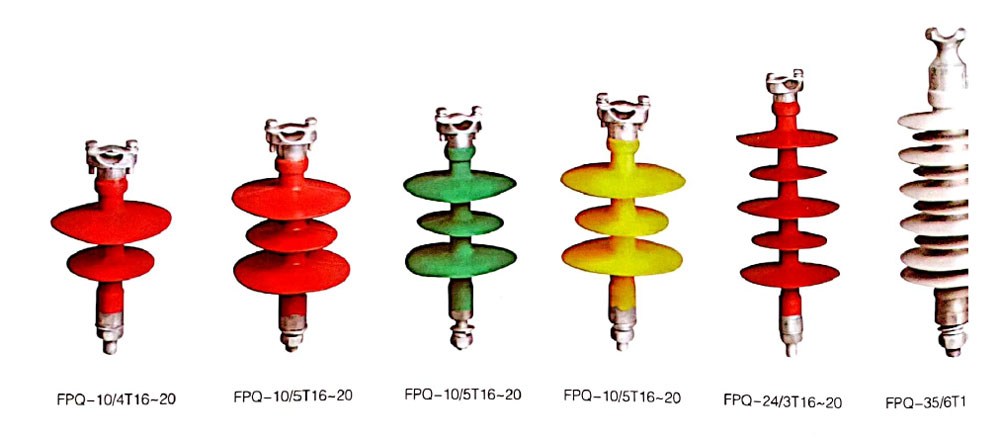

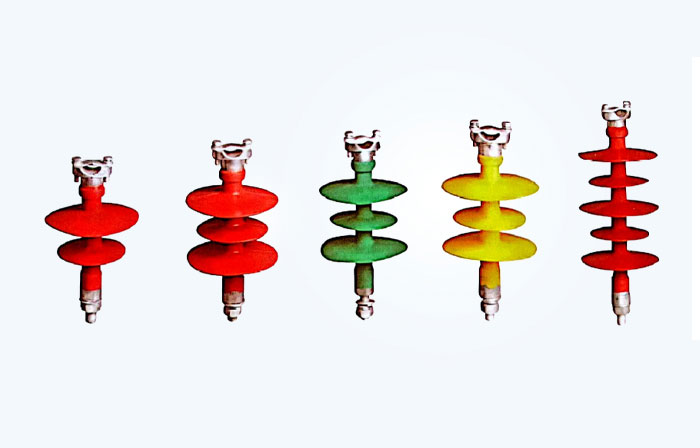

Composite Pin Insulator

Composite pin insulators have high bending resistance, torsional strength, impact resistance, shock resistance and explosion-proof performance.

Product Description

With reliable internal insulation, light weight and easy installation, it is an ideal replacement product for traditional porcelain insulators.

Technical Parameters

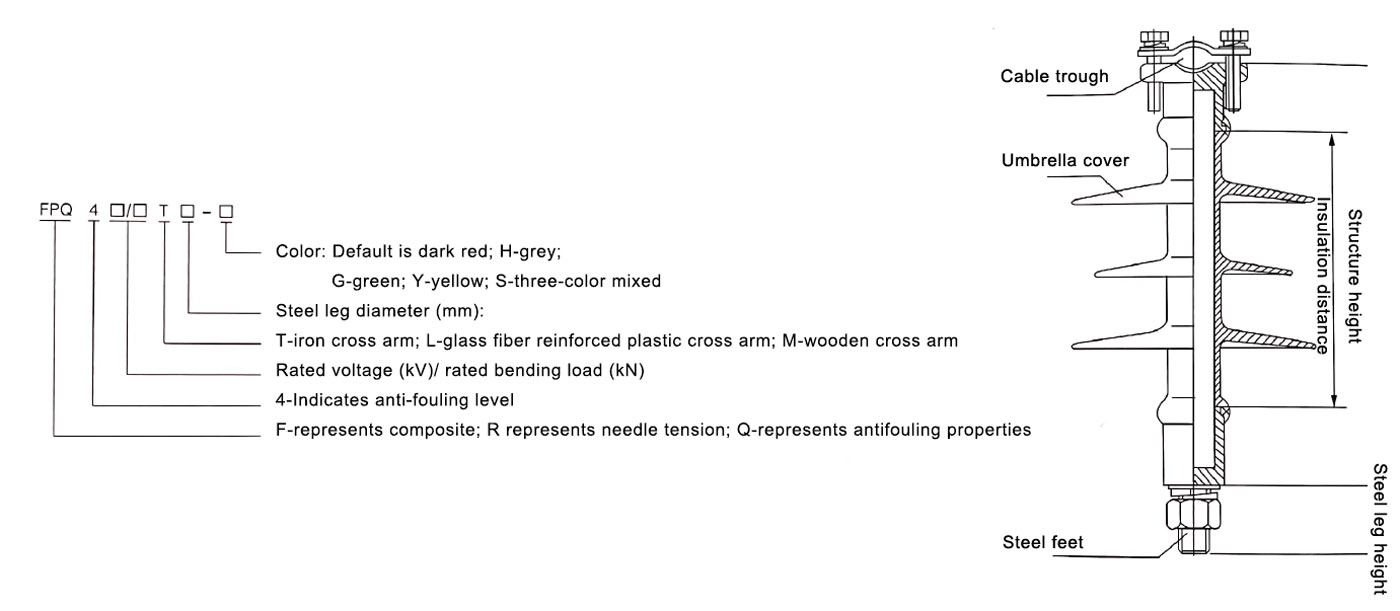

Specifications and models	Rated voltage kv	Rated bending load KN	Steel foot thread diameter length (mm)	Clamping range (mm)	Structure height (mm) ±10	Minimum arc distance (mm)	Minimum nominal creepage distance (mm)	Lightning full-wave impulse withstand voltage kV	Power frequency wet withstand voltage 1min kV	Corresponding to other different model descriptions
FPQ-1/3T16-20	1~3	3	16~20×40	Φ10~Φ24	155	85	180	45	18
FPQ-10/4T16~20	6~10	4	16~20×40	Φ16~Φ30	210	130	320	95	42
FPQ-10/5T16~20	6~10	5	16~20×40	Φ16~Φ30	210	130	320	95	42
FPQ-10/6T20	6~10	6	20×40	Φ16~Φ30	210	130	320	95	42
FPQ-10/3T16~20	10~15	3	16~20×40	Φ16~Φ30	245	170	460	105	50	FPW-10/3
FPQ-10/4T16~20	10~15	4	16~20×40	Φ16~Φ30	245	170	460	105	50	FPW-10/3
FPQ-10/5T16-20	10~15	5	16~20×40	Φ16~Φ30	245	170	460	105	50	FPW-10/3
FPQ-10/3T20	10~15	3	20×40	Φ16-Φ30	330	260	700	105	50
FPQ-10/3	10	3	16-20×40	Φ16~Φ30	285	170	450	105	50
FPQ-10/5	10	10	16~20×40	Φ16~Φ30	285	170	450	105	50
FPQ-20/5T16~20	20	5	20×40	Wire below Φ36	300	215	600	150	65
FPQ-20/12.5T16~20	20	12.5	16~20×45	Wire below Φ36	325	230	650	150	60
FPQ-20/12.5T22	20	12.5	16~20×45	Wire below Φ36	370	275	775	170	70
FPQ-35/3T16~20	35	3	20×45	Φ16~Φ30	400	320	835	210	90
FPQ-35/6T16~22	35	6	20×45	Wire below Φ36	450	370	1015	230	95
FPQ-35/6T16~22	35	6	20×45	Wire below Φ36	480	370	1260	230	95

Specifications and models	Rated voltage kv	Rated bending load KN	Structure height(mm)	Minimum arc distance (mm)	Minimum nominal creepage distance (mm)	Lightning full-wave impulse withstand voltage kV	Power frequency wet withstand voltage 1min kV	Alternative porcelain insulator models
FPS-105/5	10~15	5	230	180	380	105	45
FPS-105/8	10~15	8	230	180	420	105	45
FPS-105/5	20	5	300	215	600	150	65	PS-105/5
FPS-105/12.5	20	12.5	325	215	575	150	65	PS-105/8
FPS-170/12.5	20	12.5	350	240	650	170	70	PS-105/5
FPS-200/3	35	3	445	335	1050	200	85	PS-105/12.5
FPS-200/5	35	5	465	345	980	200	85	PS-170/12.5

Download Google

1. If the clamping range does not match, please indicate it when ordering;

2. Conventional voltage distribution board, if not required, please indicate;

3. If you choose energy-saving span pressure plate (made of engineering plastic), please add "J" after the model when ordering.
