FXBW4 suspension Composite high voltage standoff insulator

SHARE:
Product Description



Type Rated Voltage (kV) Rated mechanical stretch load (kN) Structure Height (mm) Minimum arcing distance (mm) Minimum nominal creepage distance (mm) Lightning impulse withstand voltage [peak]>(kV) Power frequency withstand voltage (wet)>(kV)

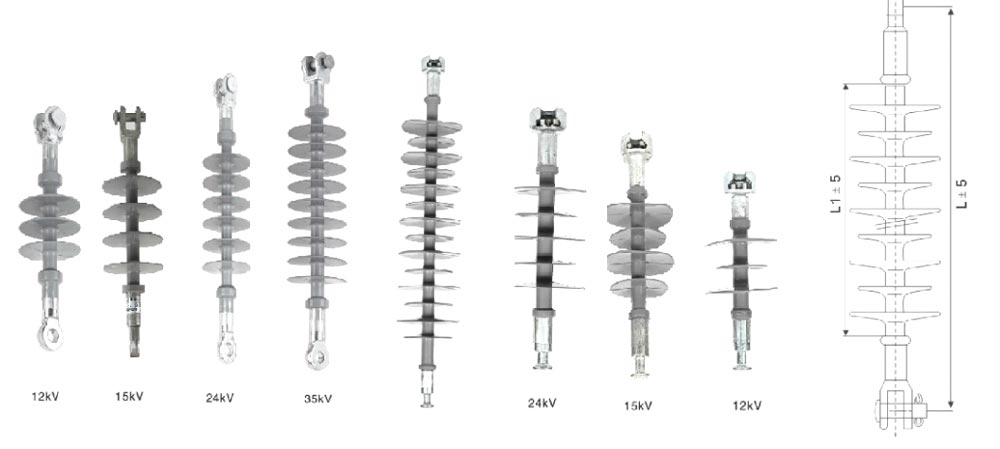

FXBW4-12 12-15 70/100/120 345 155 465 95 45
355
FXBW4-24 24-27 70/100/120 435 245 755 185 95
445
FXBW4-35 33-38 70/100/120 615 425 1300 230 105
625



Type Rated Voltage (kV) Rated mechanical stretch load (kN) Structure Height (mm) Minimum arcing distance (mm) Minimum nominal creepage distance (mm) Lightning impulse withstand voltage [peak]>(kV) Power frequency withstand voltage (wet)>(kV)

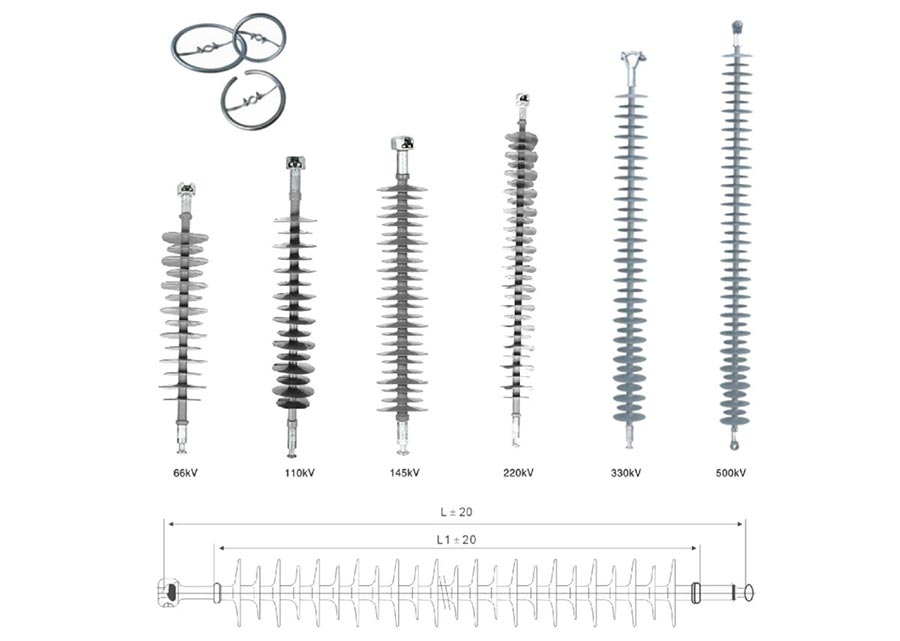

FXBW4-66 66-72 100/120/160 900 680 2200 410 185
FXBW4-110 110-132 100/120/160 1240 1012 3200 550 230
FXBW4-145 132-145 100/120/160 1660 1440 4600 600 260
FXBW4-220 220-240 120/160/210 2160 1930 6300 1000 395
FXBW4-330 210-350 120/160/210 2990 2600 8600 1425 570
FXBW4-500 500-550 120/160/210 4080 3730 12250 2250 740
