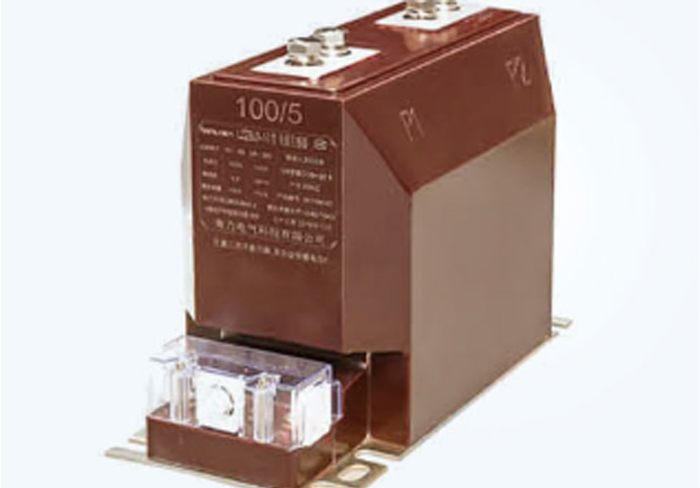

What is the Remanent Flux in a Current Transformer's Core

01 Jan, 1970

In current transformer operation, remanent flux matters a great deal as it impacts the device's performance and accuracy. Understanding it is essential for better design and operation.


1. Definition of Remanent Flux
Remanent flux is the magnetic flux left in the current transformer core after the exciting current stops. Core materials' hysteresis causes this leftover flux, even when the exciting current drops to zero.


2. Causes of Remanent Flux
2.1 Core Material Characteristics
Current transformer cores are usually made of ferromagnetic materials like silicon - steel sheets. These materials have hysteresis, meaning magnetization intensity lags behind magnetic field strength changes. When the exciting current ends, the core's magnetization doesn't return to zero right away, creating remanent flux.
2.2 Influence of Operating Conditions
Operating conditions also affect remanent flux. Saturation significantly increases it, as the core's magnetic permeability drops, making full demagnetization tough. Rapid current changes, such as during short - circuit faults, can also boost remanent flux.


3. Impact on Current Transformer Performance
3.1 Measurement Errors
Remanent flux leads to measurement errors. In normal operation, the secondary - side output should match the primary - side current. But remanent flux causes deviations, especially in small - current measurements. For example, in milli - ampere - range secondary - side current measurements, errors can reach 5 - 10%.
3.2 Transient Response Issues
During power system faults, current transformers need to react fast. Remanent flux distorts the secondary - side current's transient process and delays stable output. In high - voltage systems, a few - millisecond delay can misoperate protective relays, potentially causing power outages.


4. Methods to Reduce Remanent Flux
4.1 Selection of Core Materials
Opting for materials with low hysteresis losses, like nanocrystalline alloys, helps. These materials are more sensitive to magnetic field changes, reducing remanent flux by up to 80% compared to traditional silicon - steel sheets in some cases.
4.2 Demagnetization Measures
Demagnetization can be done before use by applying a reverse magnetic field. Designing current transformers with extra demagnetization windings also aids in reducing remanent flux, enhancing long - term accuracy and reliability.
In short, remanent flux impacts current transformers in multiple ways. Understanding and addressing it can improve measurement accuracy and transient - response performance, ensuring power system safety.
