Metal-Oxide Surge Arrester electrical arrester

Metal oxide arrester is tho most advanood over-voltago proteotor. By muolear Heart devlces using zinc oxide yaristot, as compered with traditlonal silicon cerbide gurge arrosters, surge arrester changed, The volt-ampere characteristics, improved over-voltage Flow capecity, ths causing afndameotal change in arrester characteristics.
SHARE:
Product Description

Whon the arrester in thonormal working voltago, the ourrent flowing through the arrester onlymicroampere level, When sabjected to over voltsge, due to the nonlinear ZnO varistor, the current flowing through tho arroster Instant thonsands of amps, lightning arrester in the conduction state, the release ofover-yoltage energy, thus Effective to limit tho over-voltage on the transmission and distribution oquipment infringement.



Application & Characteristics

Metal oxide surge arresters for the protection ofAC electrical power systemequipmentfrom the atmosphere over-voltage and over-yoltage damage.



Condition of use

1. Ambienttemperature: -40 C-40C;
2. Elevation :1000-2000m(at high altitude should be ordered withregistration);
3. AC system froquonoy: 50Hz or 60Hz;
4. The long-term restriotions on the frequenoy of voltage arrester ounoe of continnous operating voltage doesnotexceedarrestex;
5. Maximum wind spced: < m/s;
6. Seismio Intensity: 7:
7. Dirty arens chould be indicated



Technical Performance

Productperformancein line with GB11032-2000JB/T8952-1999, IEC60099-4,IBEB.C6211 standardtechnicalrequirements.

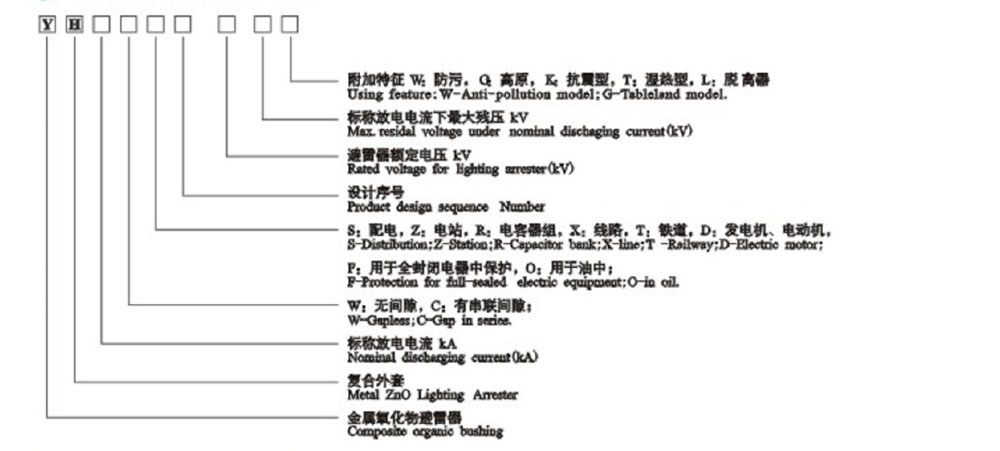

Model Signification

Technical Parameters
Electric locomotive and electric railway and shown



Tpe voltage
kV
r.m.s
Rated voltage
kV
r.m.s
Cont. oper. voltage
kV
r.m.s
Min DC refer voltage
U1mA
kV
Max. residual voltage
at steep impulse
kV
Max. residual voltage
at lightning impulse
kVP
Max. residual voltage
at switching impulse
0.5kA
kVP
Rectangular current
discharge capacity
A
Impulse discharge capacity
kA
Y5WT-42/120 - 42 34 65 138 120 98 200 65
Y10WT-84/240 - 84 68 130 276 240 196 400 65





The techenical parameters of MOA without gaps for 10-110kV



Type System voltage
kV
r.m.s
Rated voltage
kV
r.m.s
Cont. oper. Voltage
kV
r.m.s
Min. DC refer voltage U1mA
kV
Max. residual voltage
at lightning impulse
kV crest
Rectangular current
discgarge capacity
A
Impulse discharge capacity
kA
Weight
kg

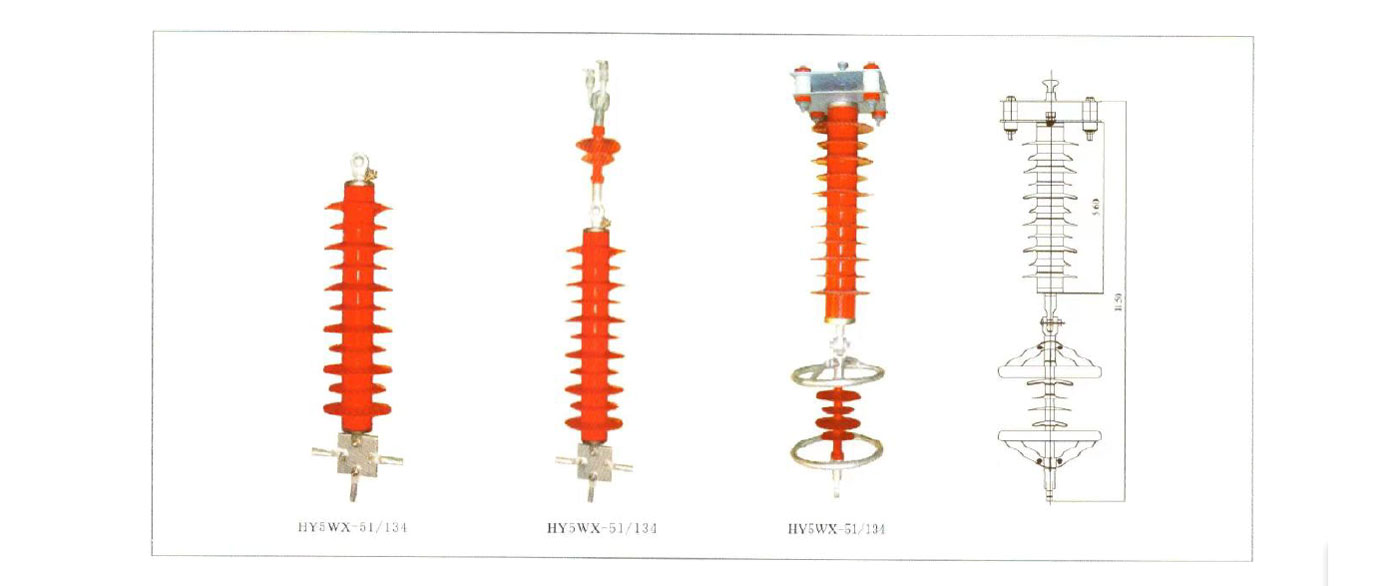

YH5WX-54/142 35 54 43.2 77 142 400 65 17.1
YH5WX-54/142TLQ 35 54 43.2 77 142 400 65 20.0
YH5WX-96/250 66 96 75 140 250 600 80 26.0
YH5WX-96/250TLQ 66 96 75 140 250 600 80 29.9
YH10WX-108/281 110 108 84 157 281 600 80 29.1
YH10WX-108/281TLO 110 108 84 157 281 600 80 34.0

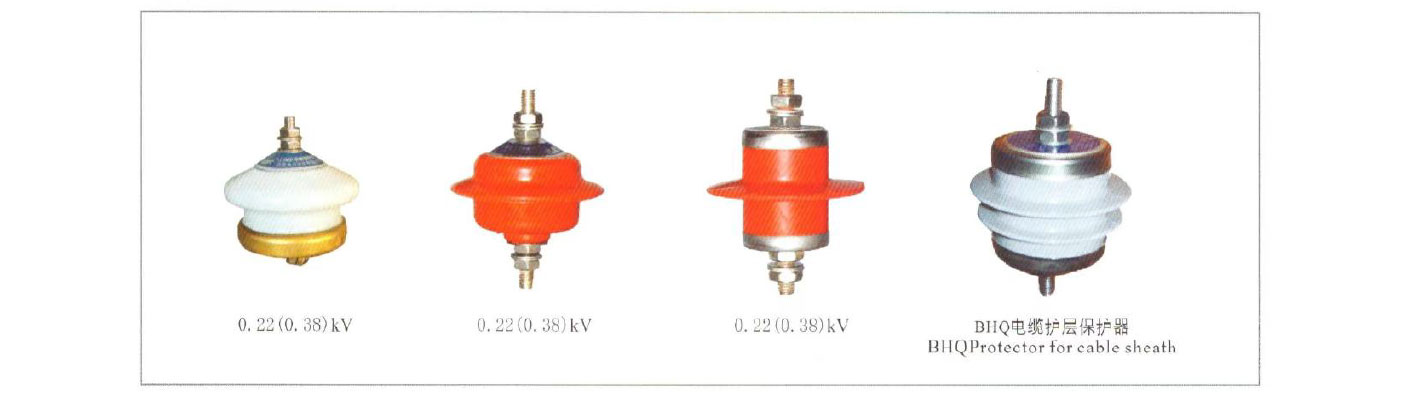

0.22-10k Metaloxide surgearrester

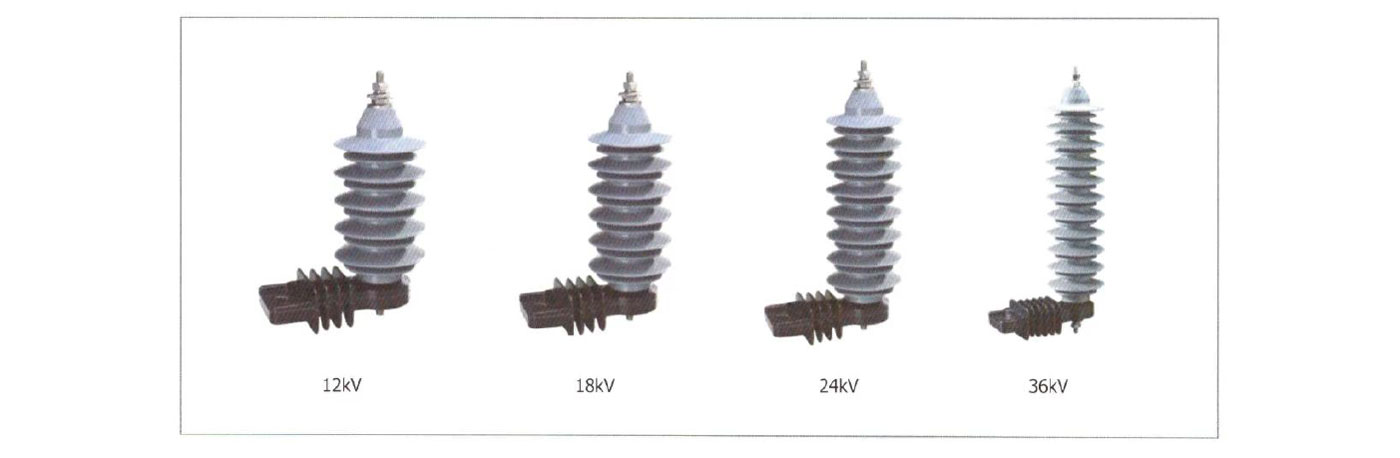

Arrester for overseas markets









Oxide surge arresters with series with series gaps for a.csystems



Type The use of premises Arrester rated voltage
kV
r.m.s
System Nominal Voltage
kV
r.m.s
Steep wave frequency
discharge voltage
kV
r.m.s
Steep wave impulse
voltage wave-front
kV/μs
Discharge voltage
wave-front shock
The impact of
discharge voltage
Lightning impulse
residual voltage
Floe capacity of
not less than the
square-wave
The impact of high
current capacity of
not less than the Flow
≤kV crest
Y5CS-7.6/27 power distribution 7.6 6 16 63 33.8 27 27 150 40
Y5CZ-7.6/24 power station 7.6 6 16 63 30 24 24 200 40
Y5CS-12.7/45 power distribution 12.7 10 26 106 62.5 45 45 150 40
Y5CS-12.7/50 power distribution 12.7 10 26 106 62.5 50 50 150 40
Y5CZ-12.7/41 power station 12.7 10 26 106 56.5 41 41 200 40
Y5CZ-42/124 power station 42 35 82 343 134 95 124 400 40





Oxide surge arresters with out gaps for a.c.systems



Type The use of premises Rated voltage
kV
r.m.s
System Nominal Voltage
kV
r.m.s
Continuous operating voltage
kV
r.m.s
DC reference
voltage is not
less than 1ma
kV
Frequency 1ma
(resistive) reference
voltage is not less than
Lightning impulse current Uinder the impact
of current onerations
Steep wavc
impuise current
Flow capacity of
not less than the
square-wave
The impuct of high
curreni canacity of
not less than the flow
kA
0.75DC 1mA Reference
voltage maximum
leaknge current
μA
≤kV crest

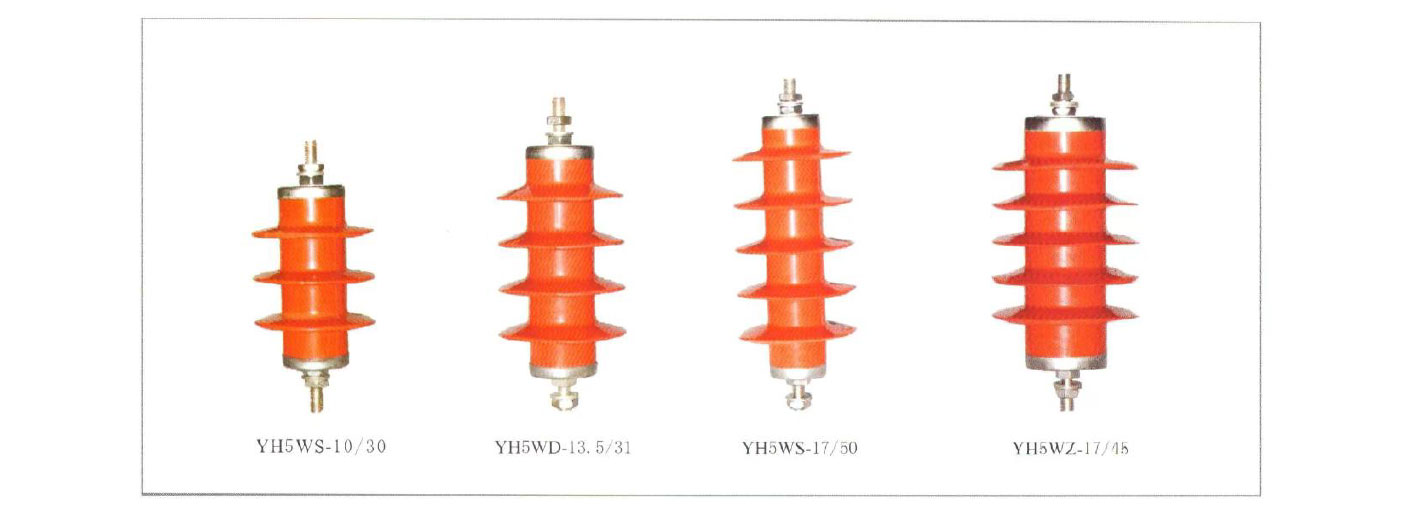

VH5WS-5/15 Distribution 5 3* 4.0 7.5 5 15.0 12.8 17.3 150 40 50
YH5WS-10/30 10 6* 8.0 15 10 30.0 25.6 34.6
YH5WS-17/50 17 10* 13.6 25 17 50.0 42.5 57.5
YH5WZ-5/13.5 Power 5 3* 4.0 7.2 5 13.5 11.5 15.5 200/400 65 50
V115WZ-10/27 10 6* 8.0 14.4 10 27.0 23.0 31.0
YH5WZ-17/45 17 10* 13.6 24 17 45.0 38.3 51.8
YH5WZ-51/34 51 35* 40.8 73 51 134.0 114.0 154.0
YH5WR-5/13.5 Capacitance 5 3* 4.0 7.2 5 13.5 10.5   400 65 50
YH5WR-10/27 10 6* 8.0 14.4 10 27.0 21.0
YH5WR-17/45 17 10* 13.6 24 17 45.0 35.0
YH5WR-51/134 51 35* 40.8 73 51 134.0 105.0
YH1.5W-0.28/1.3 Low 0.28 0.22* 0.24 0.6 84 1.3     75 25 50
YH1.5W-0.5/2.6 0.5 0.38* 0.42 1.2 100 2.6
YH5WD-4/9.5 Generators 4 3.15* 3.2 5.7 100 9.5 7.6 10.7 400 65 50
YH5WD-8/18.7 8 6.3* 6.3 11.2 - 18.7 15.0 21.0
YH5WD-135/31 13.5 10.5* 10.5 18.6 - 31.0 25.0 34.7
YH5WD-17.5/40 17.5 1.9* 13.8 24.4 - 40.0 32.0 44.8
YH2,5WD-1/95 Motor 4 3.15* 3.2 5.7 - 9.5 7.6 10.7 200/400 40/65 50
YH2.5WD-8/18.7 8 6.3* 6.3 11.2 - 18.7 15.0 21.0
YH2.5WD-13.5/31 13.5 10.5* 10.5 18.6 - 30.1 25.0 34.7
YH1.5WD-2.4/6 Motor neutral point 2.4 1.9* 1.9 3.4 - 6.0 5.0   200/400 40/65 50
YH1.5WD-4.8/12 2.8 3.15* 3.8 6.8 - 12.0 10.0
YH1.5WD-6/19 8 6.3* 6.4 11.4 - 19.0 15.9
YH1.5WD-10.5/23 10.5 8.4* 8.4 14.9 - 23.0 19.2
YH1.5WD-12/26 12 9.6* 9.6 17 - 26.0 21.6
YH1.5W-60/144 Neutral 60 110 48 85 60 144 135   400/600 65/30 50
VH1.5W-72/186 72 110 58 103 72 186 174
Y15WZ-90/235 Power 90 66 72.5 230 90 235 201 264 600 80 50
Y115W2-100/260 100 110 78 145 100 260 221 299 600 80
YH10WZ-100/260 100 110 78 145 100 260 221 291 800 100

Note: 1. For motors rated voltage
         2. Porcelain Housed Metal Oxide Surge Arrester arrester technical parametcrs and composite coat the samc modcls without
         3. Pollution-preventing arrester model added W, the plateau-type surge arrester model added
