JLSJW-6W、10W Combined Transformer (Three-Phase Four-Wire System)

Technical data

This type of transformer is an oil-immersed outdoor structure composed of current and voltage transformers. It is mainly suitable for electric energy measurement and current and voltage measurement in power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 10kV and below. This product The wiring method is YIY type.
This product complies with the standards GB20840.1-2010 "Transformers Part 1: General Technical Requirements", GB20840.2-2014 "Transformers Part 2: Supplementary Technical Requirements for Current Transformers", GB20840.3-2013 "Transformers Part 3: Supplementary technical requirements for voltage transformers" and GB208404-2015 "Transformers Part 4: Supplementary technical requirements for combined transformers".

Conditions of Use

1. Altitude: no more than 2000 meters
2. Ambient temperature: -40C~+40C;
3. Relative air humidity: ≤85%;
4. Installation location: outdoors;
5. Pollution level: Ⅲ level.

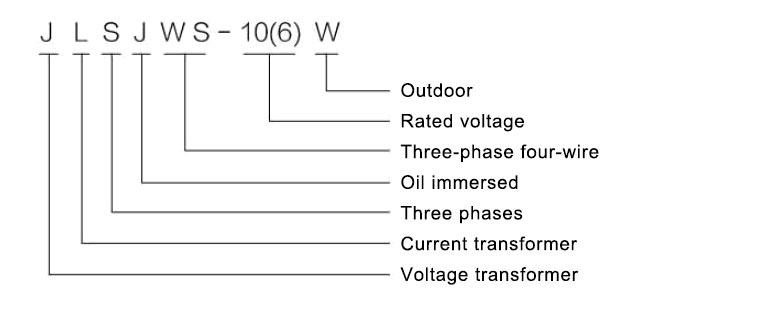

Model meaning

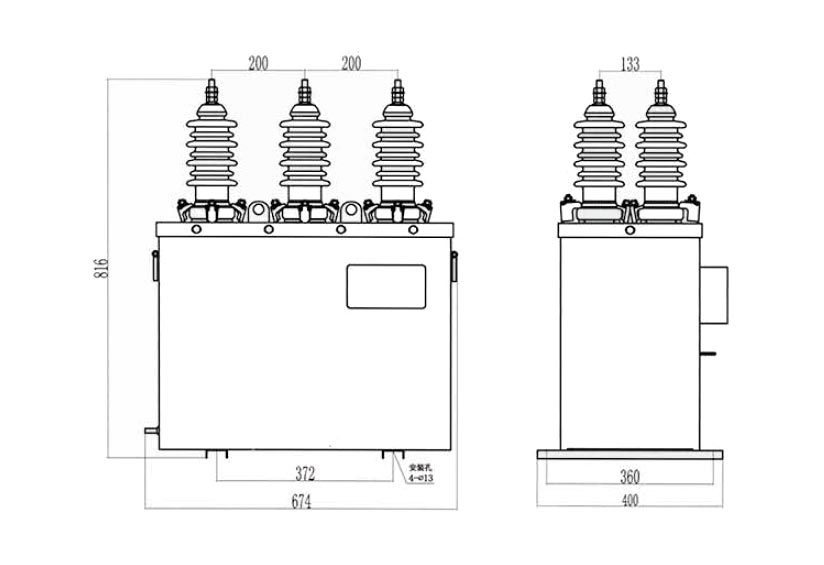

Overall dimension drawing
