LZZBJ9-10A2、LZZBJ9-10C2 Current Transformer
LZZBJ9-10A2、LZZBJ9-10C2 Current Transformer

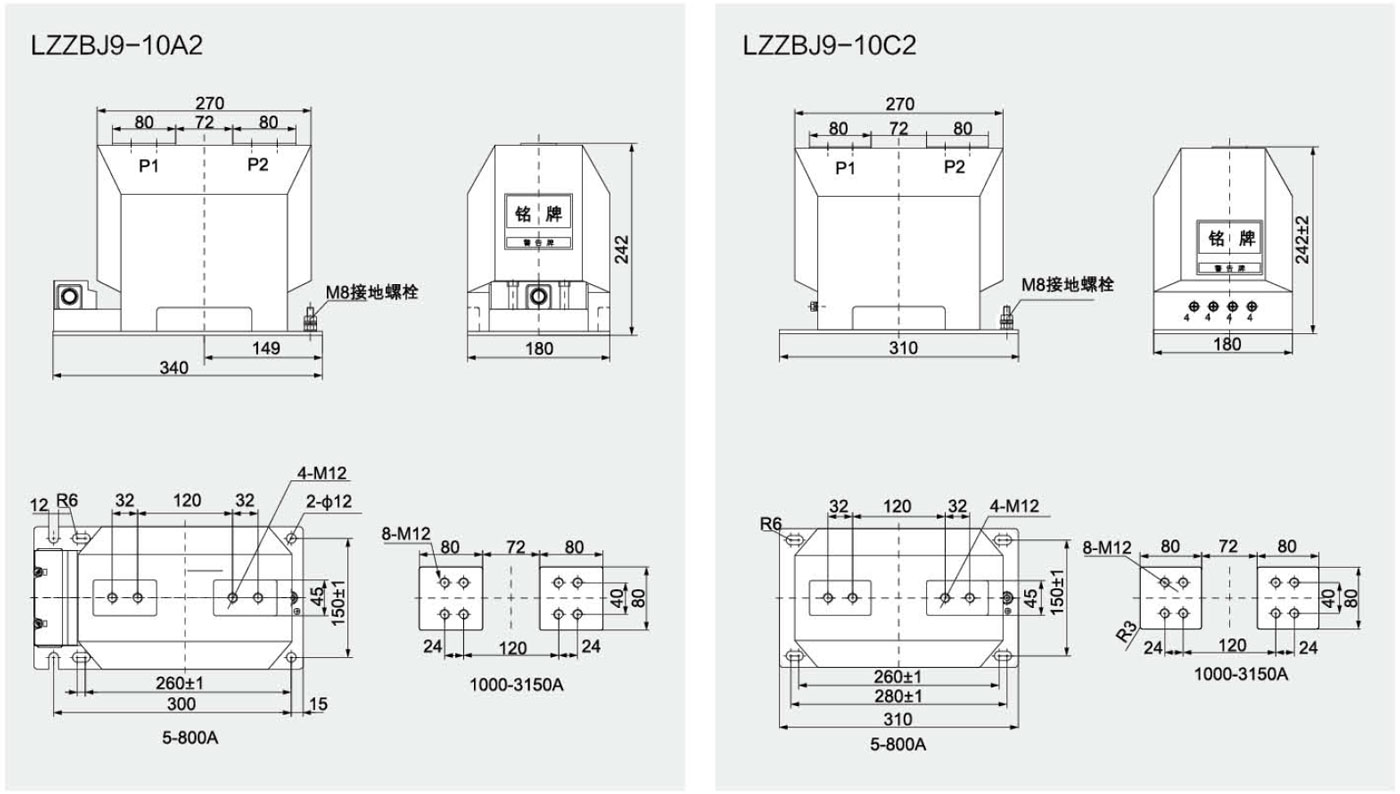

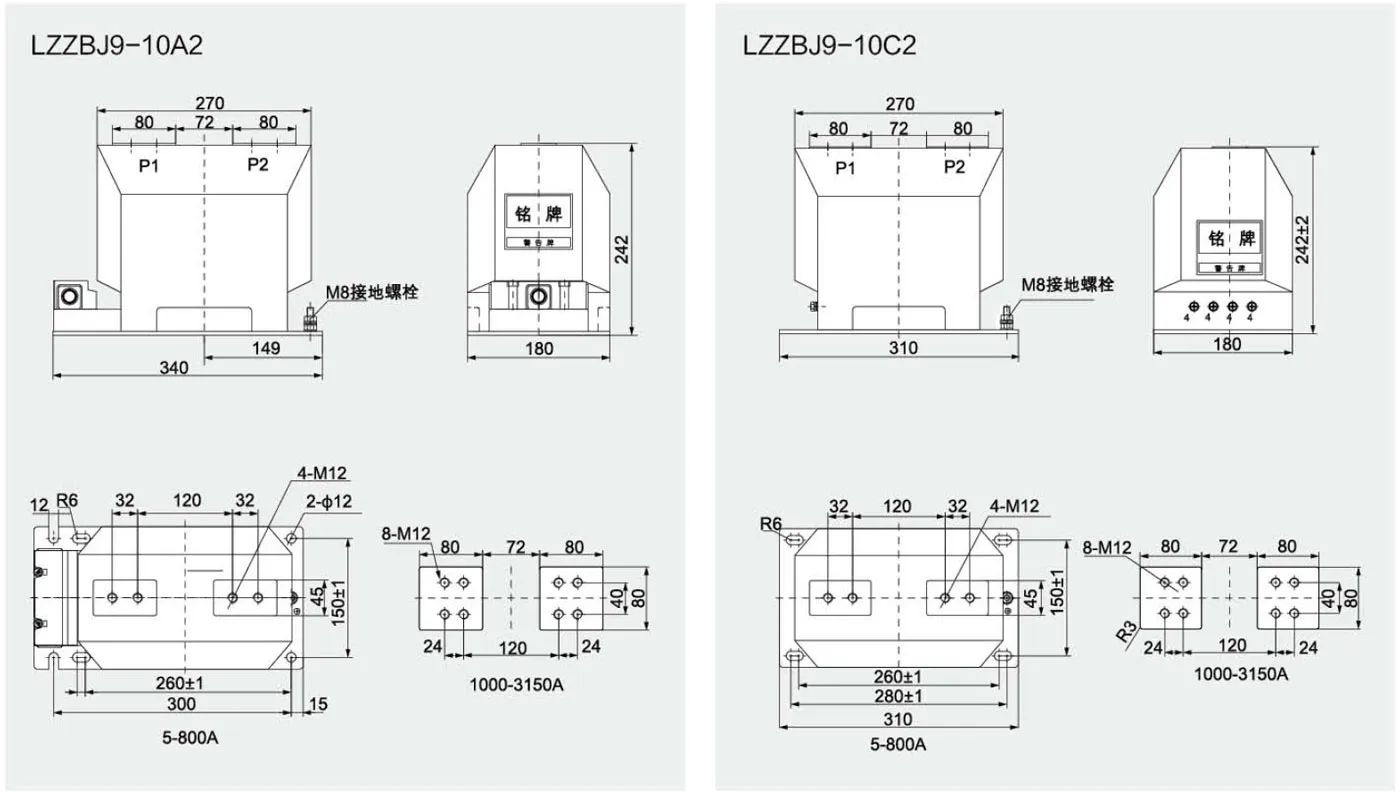

LZZBJ9-10A2、LZZBJ9-10C2 Indoor Current transformer

Indoor Single-Phase Epoxy Resin Casting Type
GET A QUOTE
Download
SHARE:
Product Description

The current transformers are in accordance with GB/T20840.1、2 and IEC61869-1、2 standards LZZBJ9-10A1
Rated insulation level 12/42/75kV
Rated secondary current 5A or 1A
Rated frequency 50Hz or 60Hz
Ambienttemperature -5℃ ~+40℃

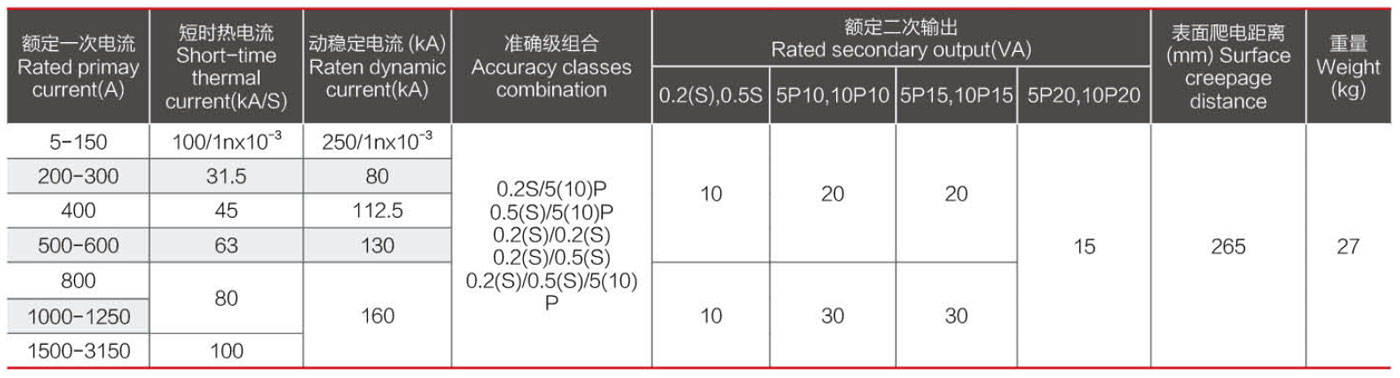

Technical Parameters

Note: If the reauired parameter is bevond the above ranae. it can be discussed and confirmed wth us.
